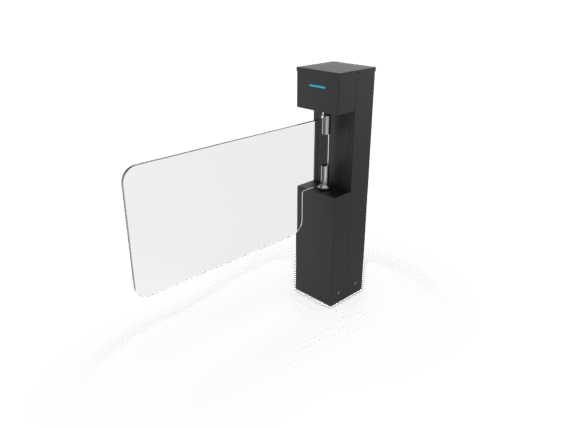

VIP 102 – Plexi Leaf Motorized Turnstile for Disabled People

Body: Galvanized sheet and electrostatic oven powder painted
Wing : Transparent 8mm Plexi Glass
Operation : Motor driving in both directions. When it encounters a mechanical obstacle, pushing or reversing scenarios can be set via the control card. It can be used as ON / OFF or Automatic shutdown with the button.
Motor : The motor is BLDC and reducer and is suitable for intensive and long-lasting use.
Emergency Status : When the power is cut or panic contact is received, it opens automatically in the set direction, the wings remain open until the emergency returns to normal. (Since this structure is not made with battery, it is designed to allow free passage without maintenance and replacement).
Power Supply : 220VAC / 50Hz Operating Temperature : -15C / +60C
Transition Speed : Motor running speed can be adjusted via the main control card.

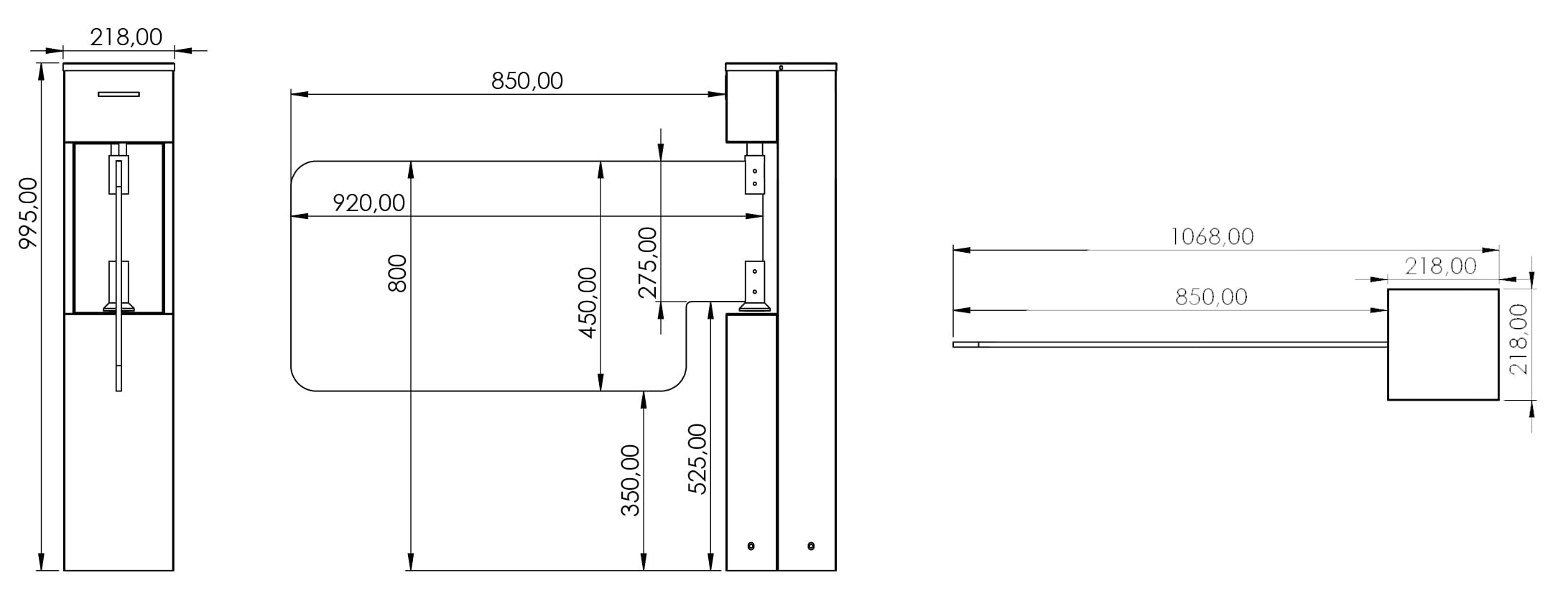

Pass Range : Standard transition range 850mm (wing length) Transition distance is dimensioned as 900mm.
Weight : 24kg
Safety Level : Deterrent
Areas of Use : Suitable for indoor and outdoor use.
