Atlas Turnstile’s new generation speed gate turnstiles combine aesthetics and durability with a robust chassis structure, powder coated or stainless steel body options, 10 mm plexi or tempered glass leafs and center LED indicators. Decorative and durable materials used on the top cover and side panels enrich the design, while the passage width and wing height can be produced between 50-100 cm and 95-180 cm to order. The system is designed for emergency scenarios such as automatic opening in case of power failure or panic.

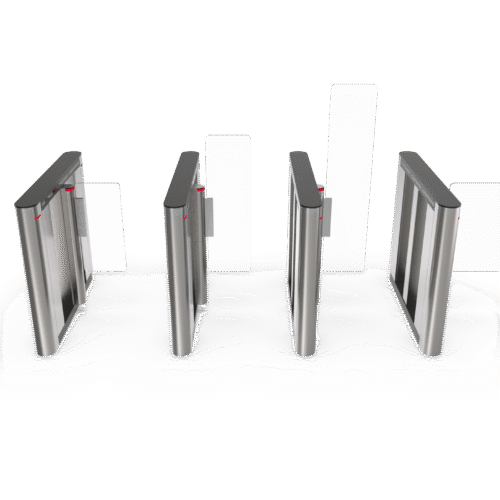

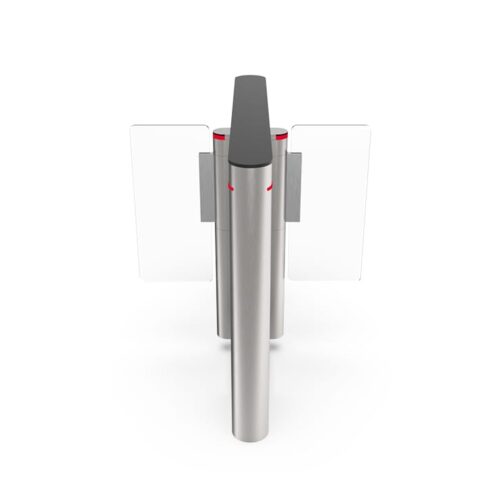

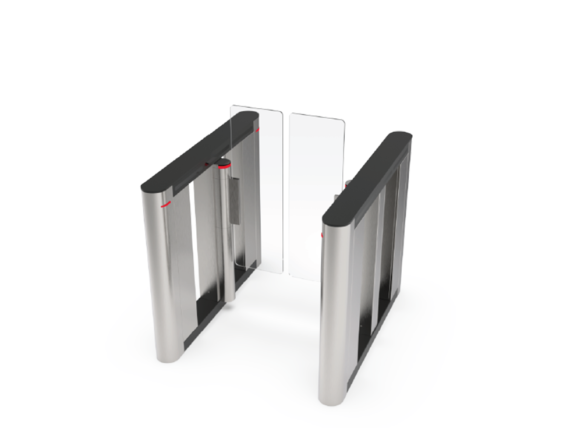

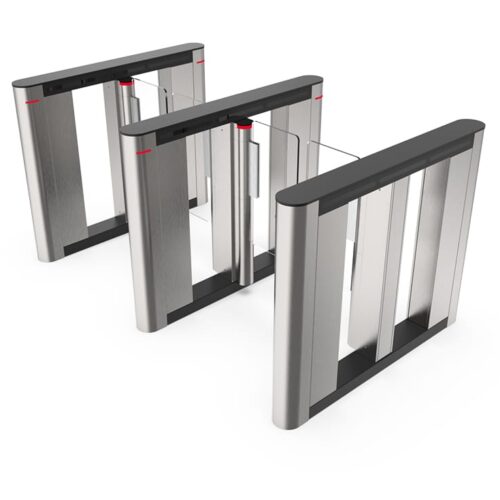

SF 120 - Customizable Special Series Access Control Turnstiles
SF 120 STANDARD

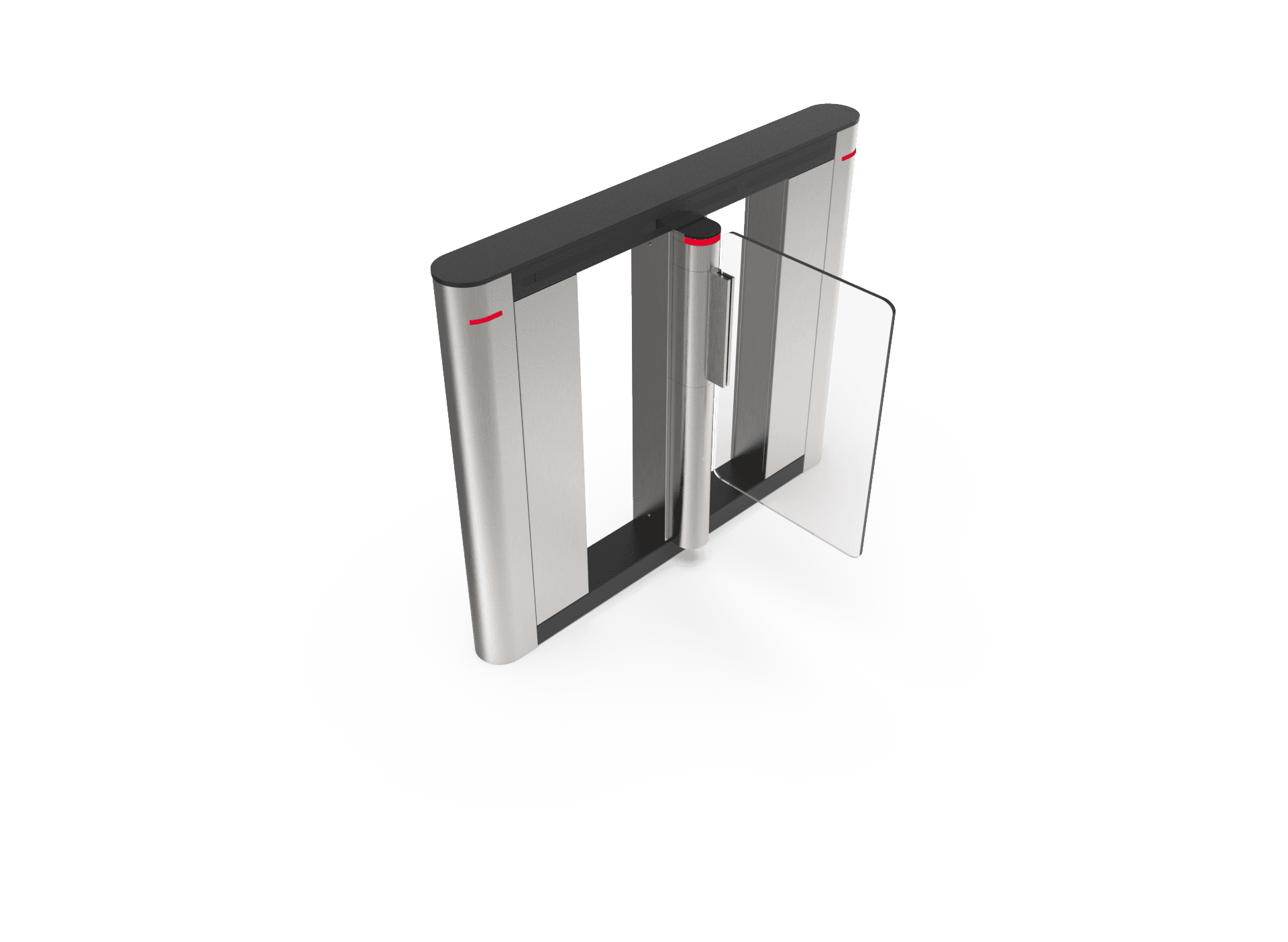

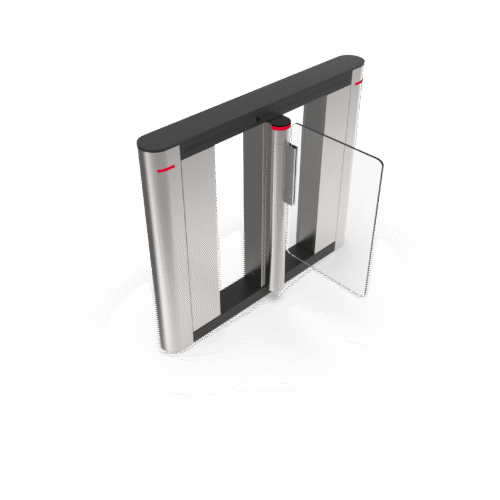

SF 120 XL

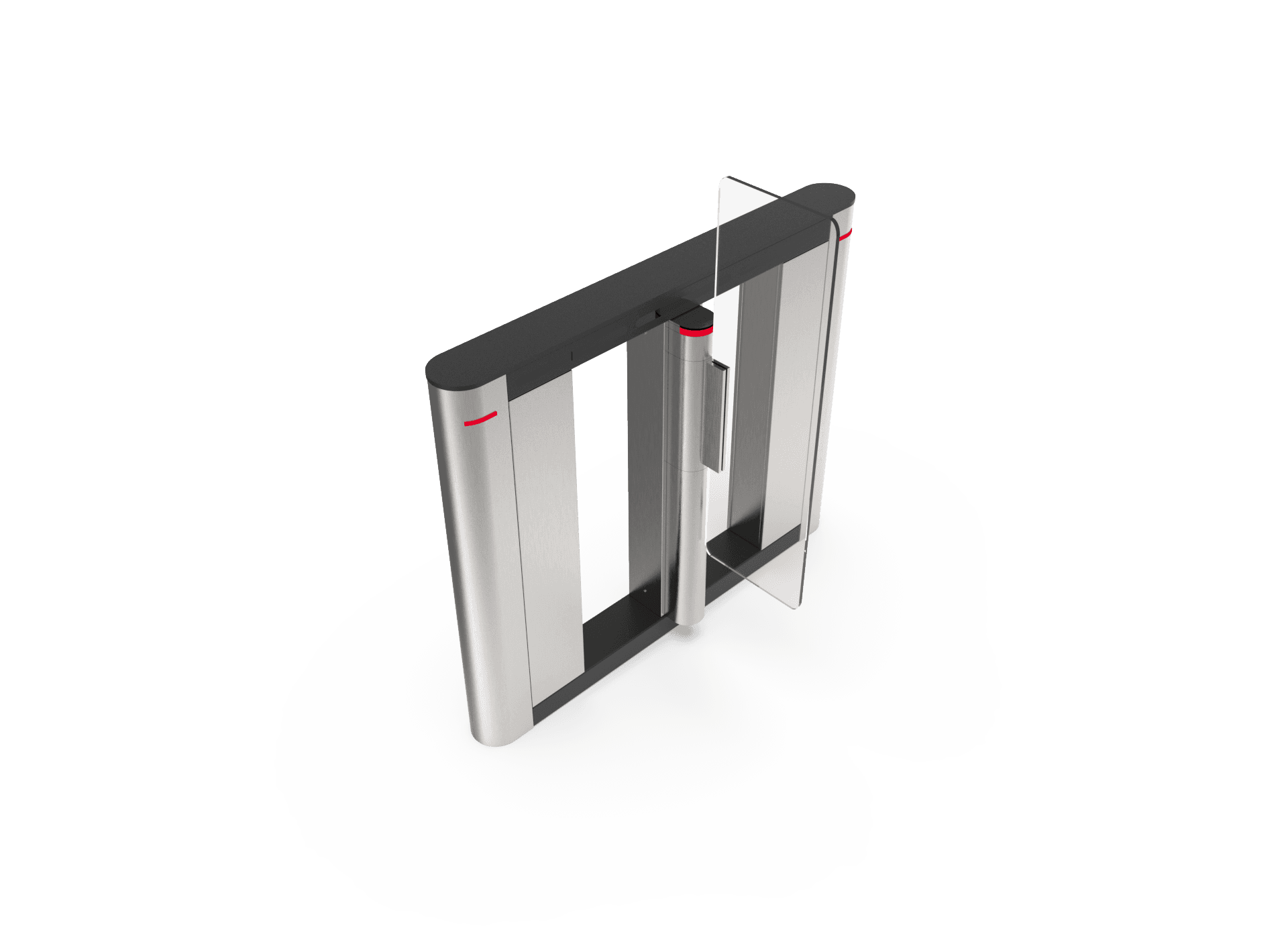

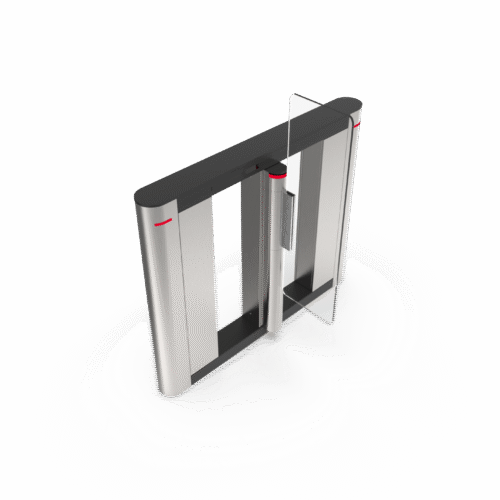

SF 120 HEIGHT 130

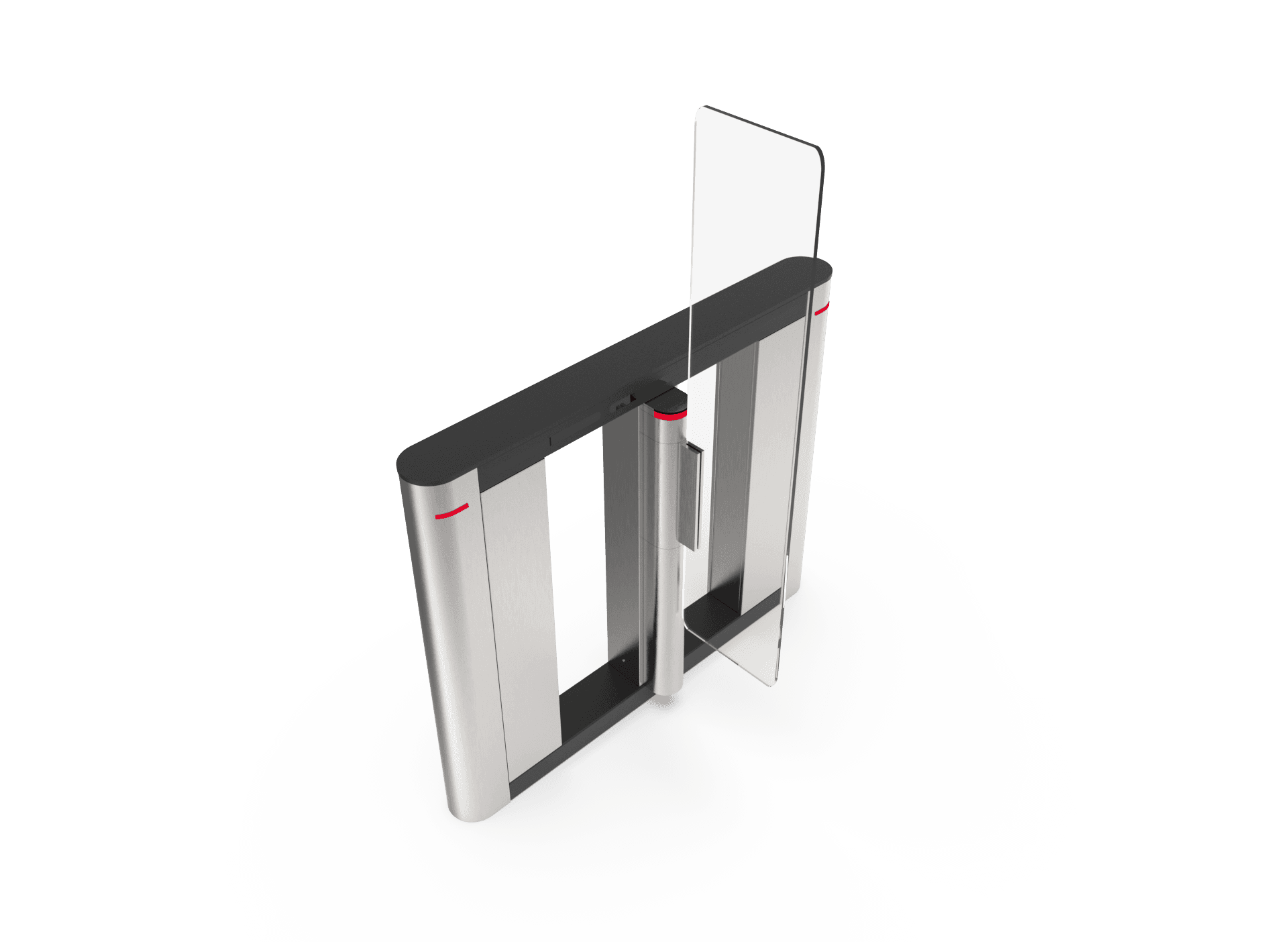

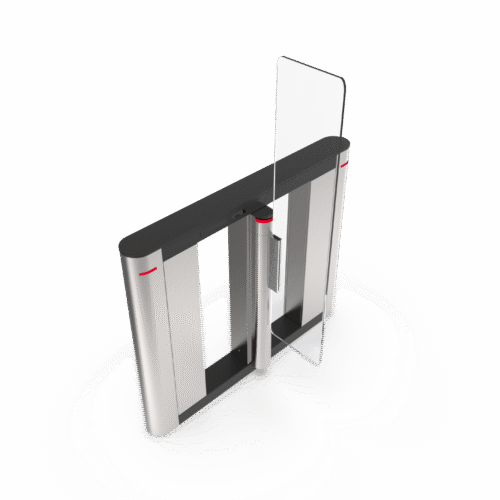

SF 120 HEIGHT 180

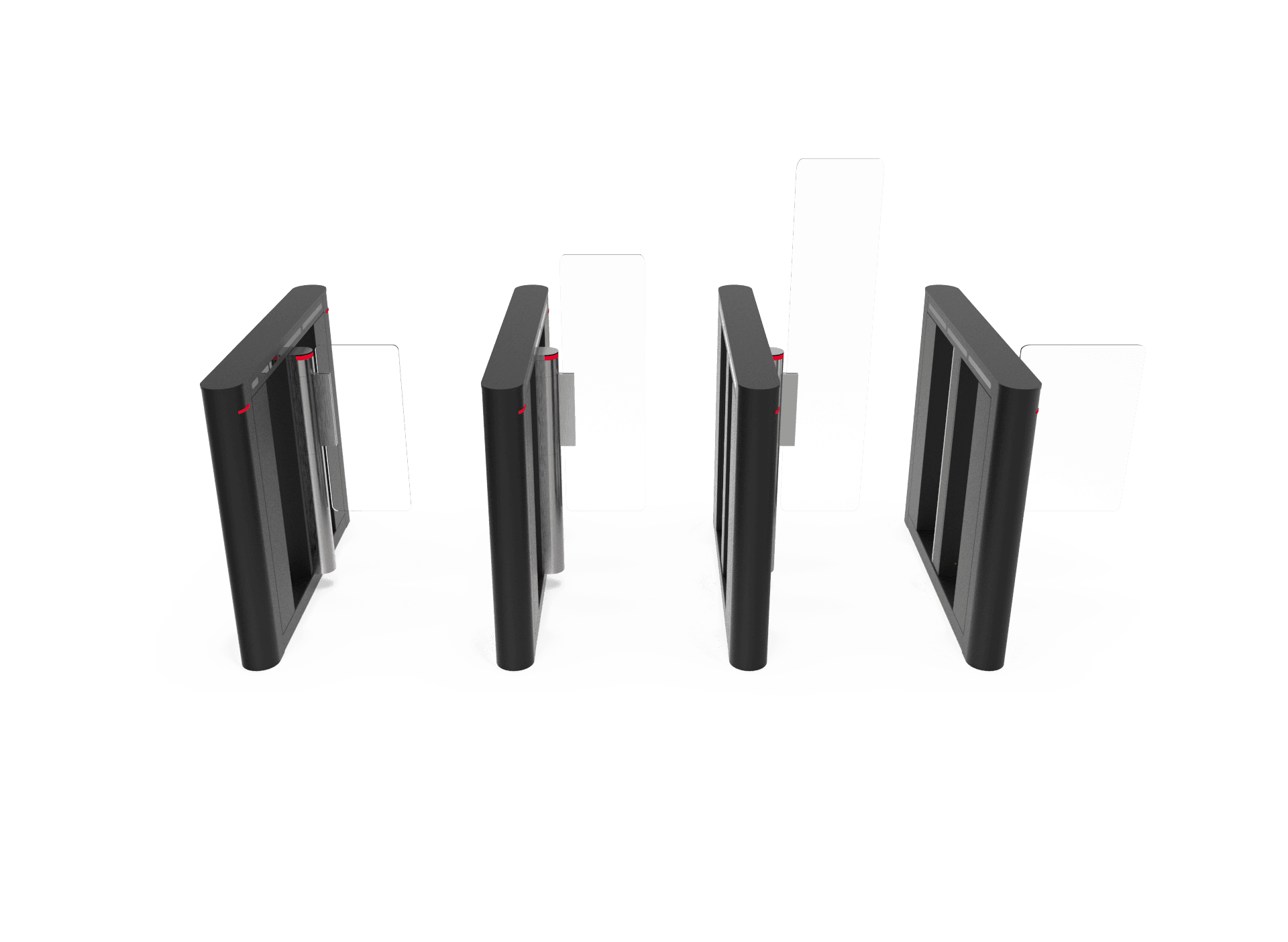

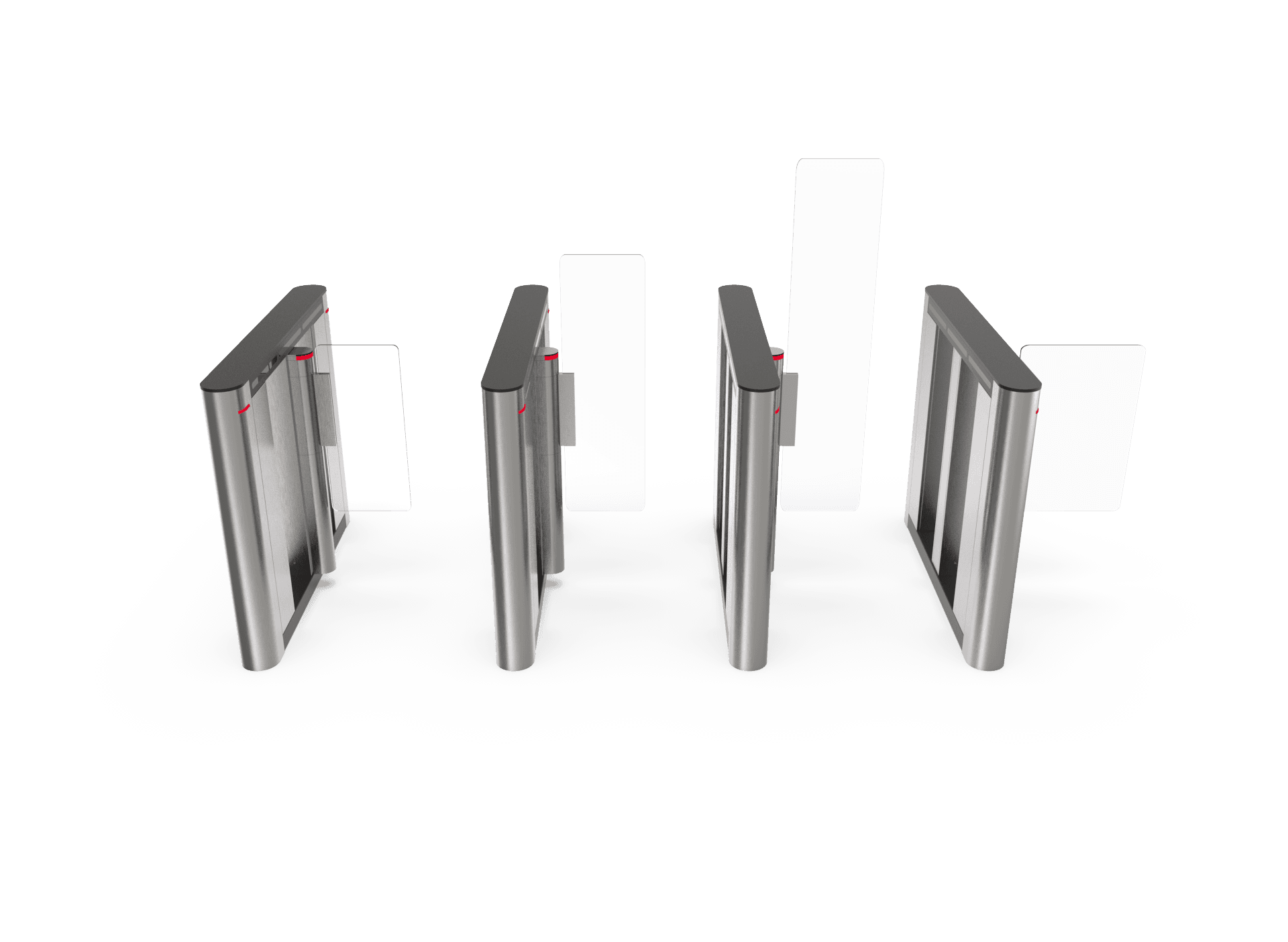

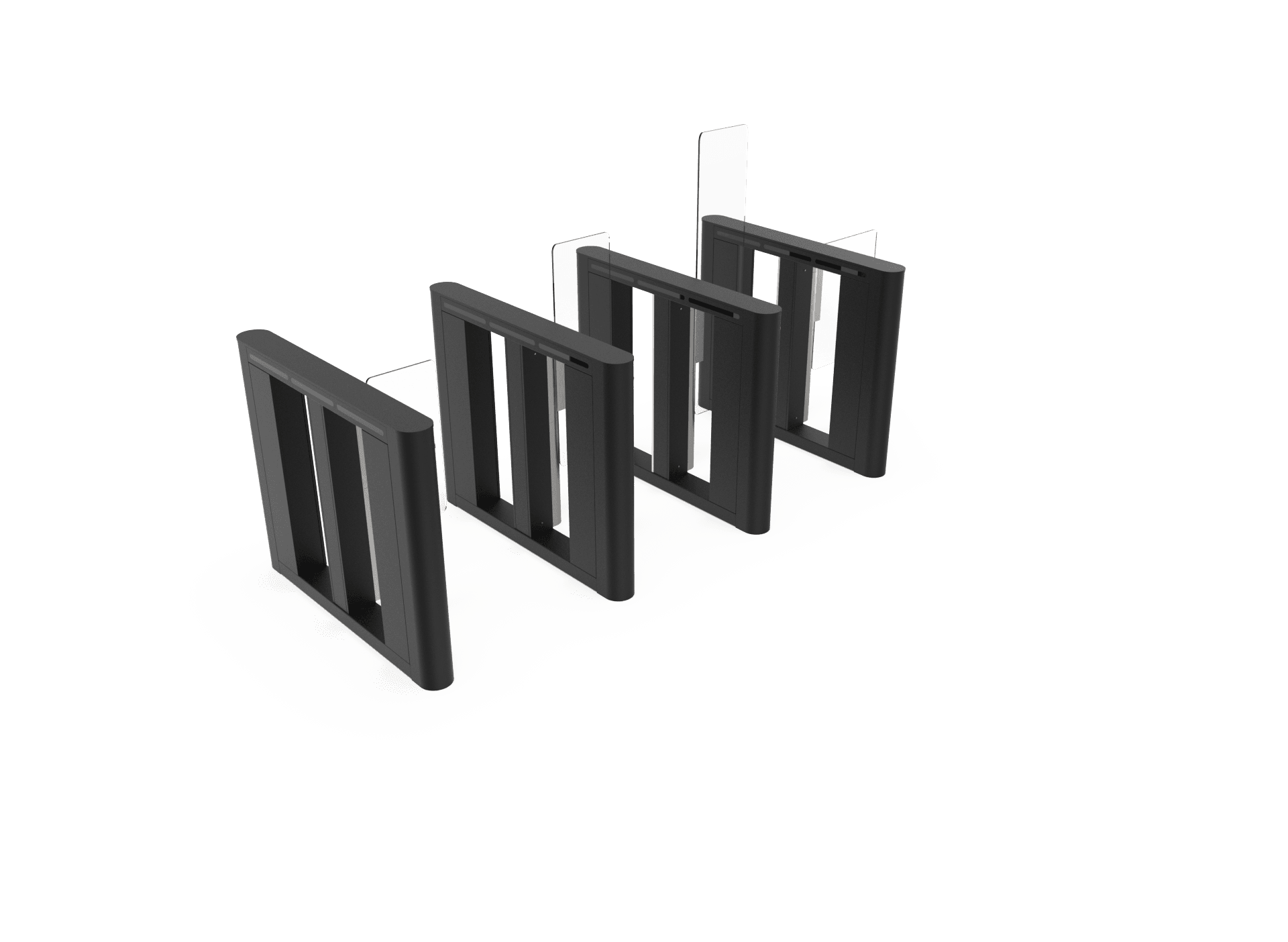

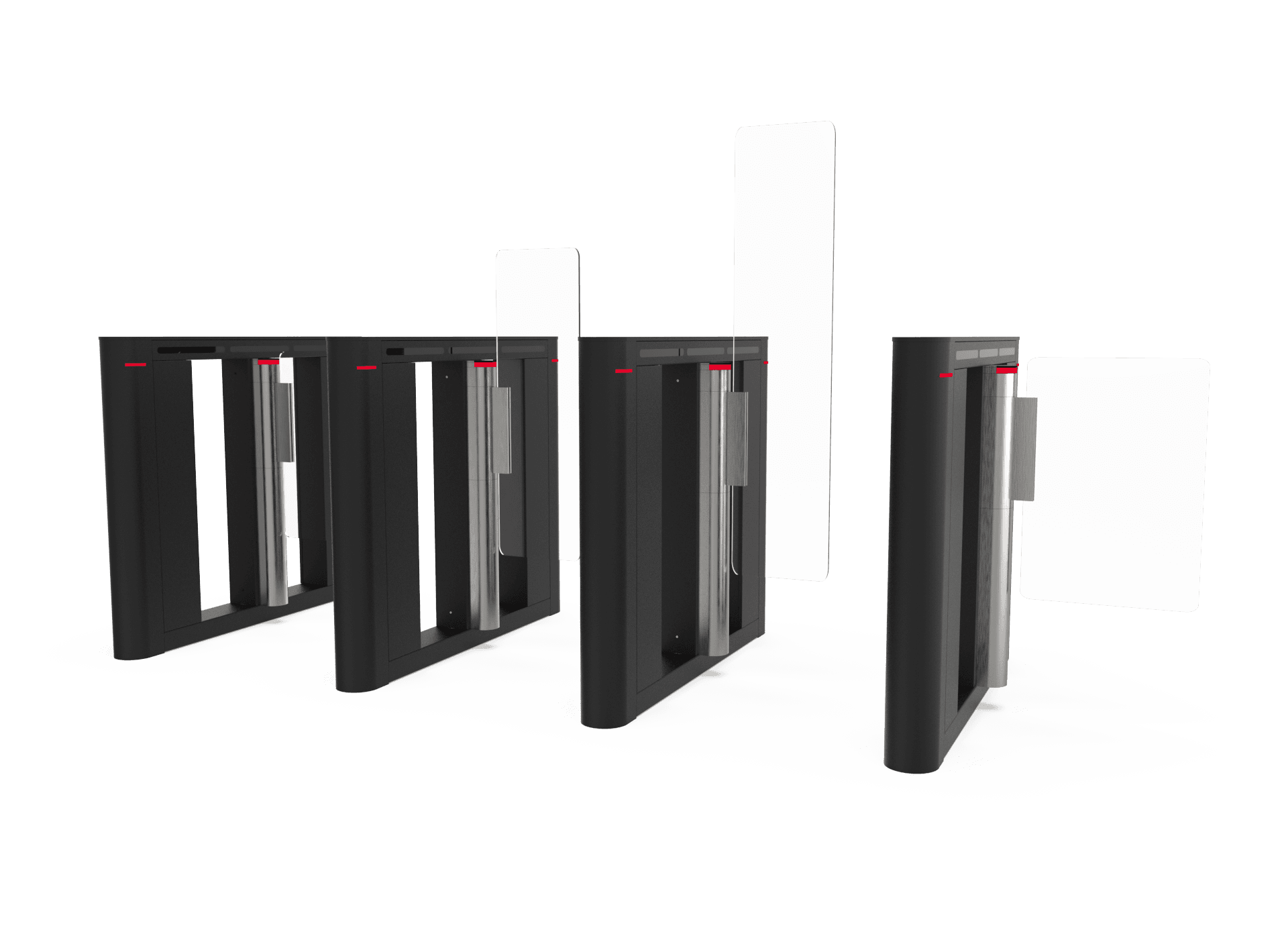

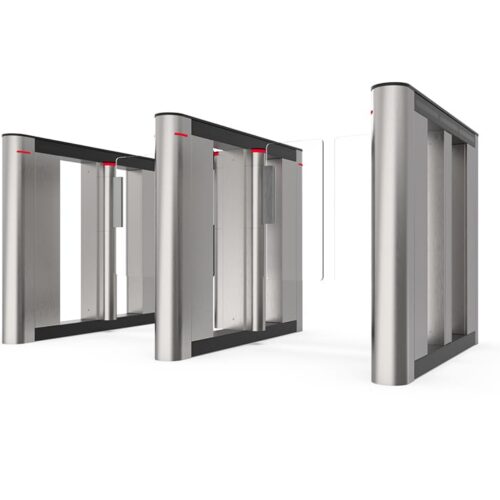

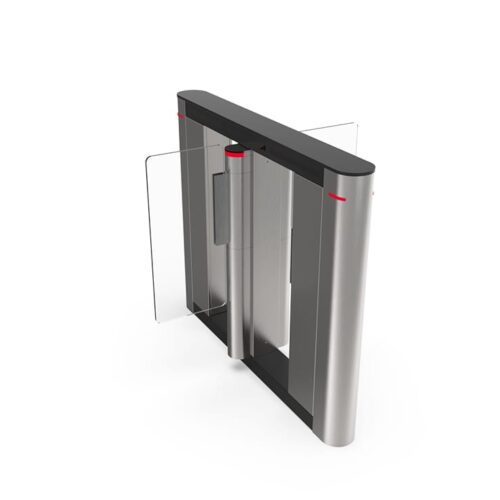

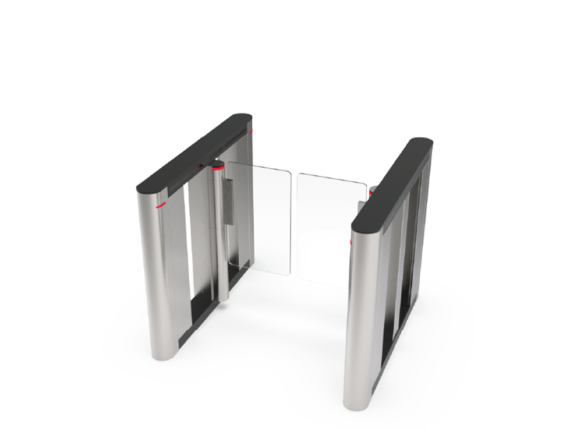

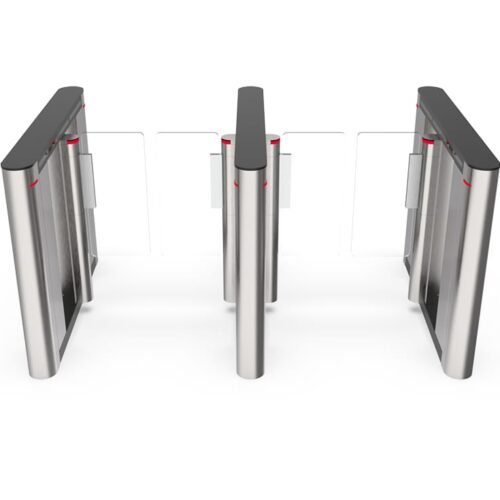

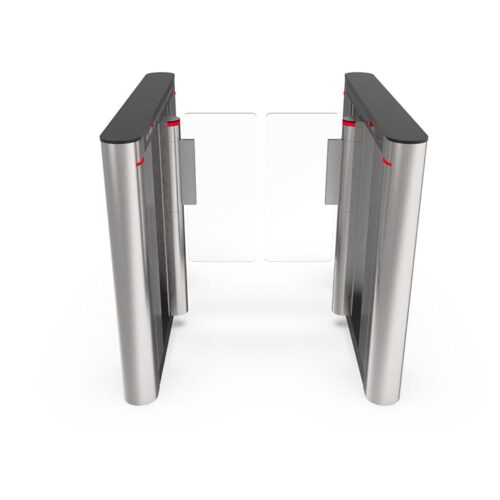

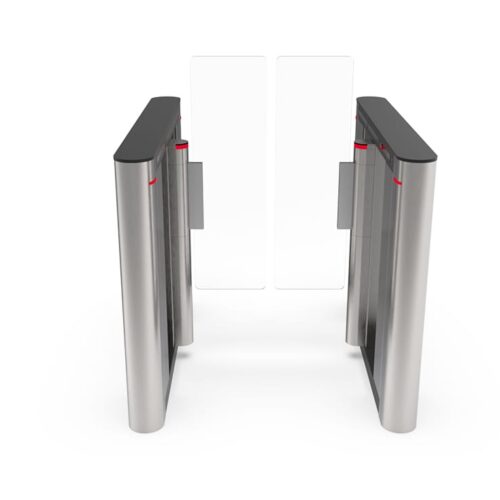

PRODUCT IMAGES AND CONFIGURATIONS
PROJECTS3D TURNSTILE ANIMATIONSUpdate Required To play the media you will need to either update your browser to a recent version or update your Flash plugin.
Update Required To play the media you will need to either update your browser to a recent version or update your Flash plugin.General Features & Technical Specifications
Body :
Chassis HRP sheet metal with static oven powder paint. Outer shell Stainless, Decorative sheet metal or painted sheet metal can be produced in many combination options.
Top cover 10mm Plexi, Opt. 10mm Tempered & Grinded Glass
Wings 10mm Plexi, Opt. 10mm Tempered Grinded Glass
Middle Led Indicators
Motor and Brake ;
Motor is BLDC and reducer and is suitable for intensive and long-lasting use. In case of system security, the strength and long life of the existing structure is ensured with electromechanical brake.Security :
You can personalize your device according to many requests and demands with the fast menu option on the main board. For example; There are many features such as Entry & Exit free and or card pass option, Automatic closing and time setting, Motor opening & closing speed, fluent mode according to density, wing impact response, preventing unauthorized entry from the opposite direction, Opening direction in case of panic or disaster, wing pushing power, wing slowing rate.RS 485 Connection Port Available
Passage Corridor area is monitored with mutual sensors.Emergency and Evacuation;
When it receives a power outage or panic contact, it automatically opens in the set direction, the wings remain open until the emergency situation returns to normal. (Since this structure is not made with batteries, it is designed to allow free passage without requiring maintenance and replacement).Intensive Use;
In areas where there is density, the wings remain open by receiving consecutive contacts, and the authority of the person passing can be monitored with the LED indicator, and a smoother passage can be provided.
Passage Comfort and Solutions ;
Passage distance can be produced specially for order between min 50cm and max 100cm. Aisle space is provided for wheelchair and goods passage.
Wing Height Standard: We have solutions for desired dimensions between 95cm and 180cm.FEATURES
Dimensions
Passage Width: 500 – 1000 mm
Door Wing Height: 950 ~ 1800 mm
Moving Wing Bottom Clearance: 320 mm
Body Length: 1200 mm
Body Height: 1000 mm
Body and Options
Chassis: Electrostatic Oven Powder Painted or AISI 304 Quality Stainless Steel
Side Panels: Stainless, Decorative Stainless Steel or Electro-galvanized Coated Sheet Metal Oven Powder Paint
Top Cover: 10 mm Plexi, Opt. 10 mm Glass
Door Barrier Wing: 10 mm Plexi, Opt. Tempered & Grinded Glass
Top and Bottom Side Panels: AISI 304 Stainless Steel / Powder Coated Steel
Side Panels: 10 mm Plexi, Opt. Tempered glass
Electromechanical
Electrical Supply: 230 VAC, 50/60 Hz
Power Supply Unit: 24V
Drive Mechanism: BLDC Motor and Gearbox, Integrated encoder and Electromagnetic brake
Opening/Closing Time: 0.5 – 1.2 sec (varies according to leaf size)
Sensors: 3 or 4 sensors can be increased according to preferred models
IP: IP54
Communication: RS485, TCP/IP
Warranty: 2 Years
