SF 100 – Compact Version Stainless Steel Turnstile
Atlas Turnstile’s new generation fast pass turnstiles combine aesthetics and durability with robust chassis structure, electrostatic powder coated or stainless steel body options, 8 mm plexi or tempered glass wings as an option and centre LED indicators. The decorative and durable materials used in the top cover and side panels provide a rich visual design. The system is designed for emergency scenarios such as automatic opening in case of power failure or panic.

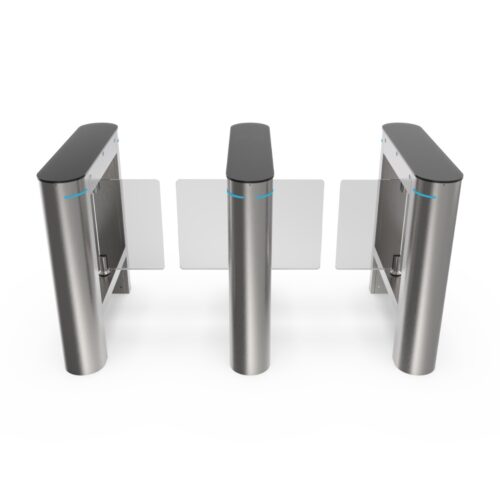

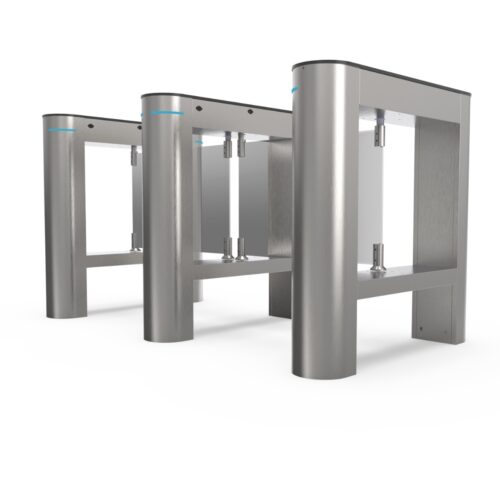

SF 100 - Compact Edition Turnstiles

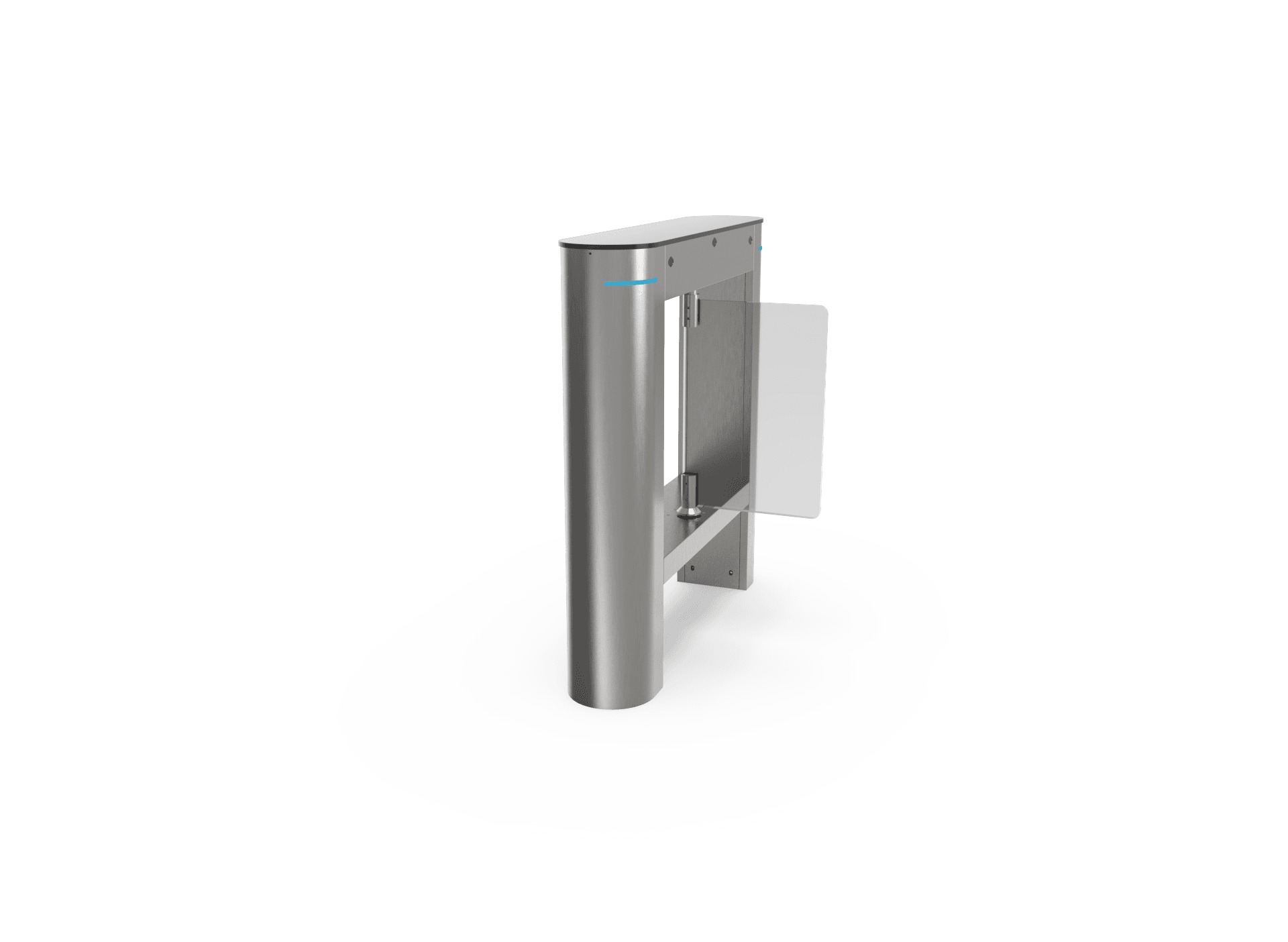

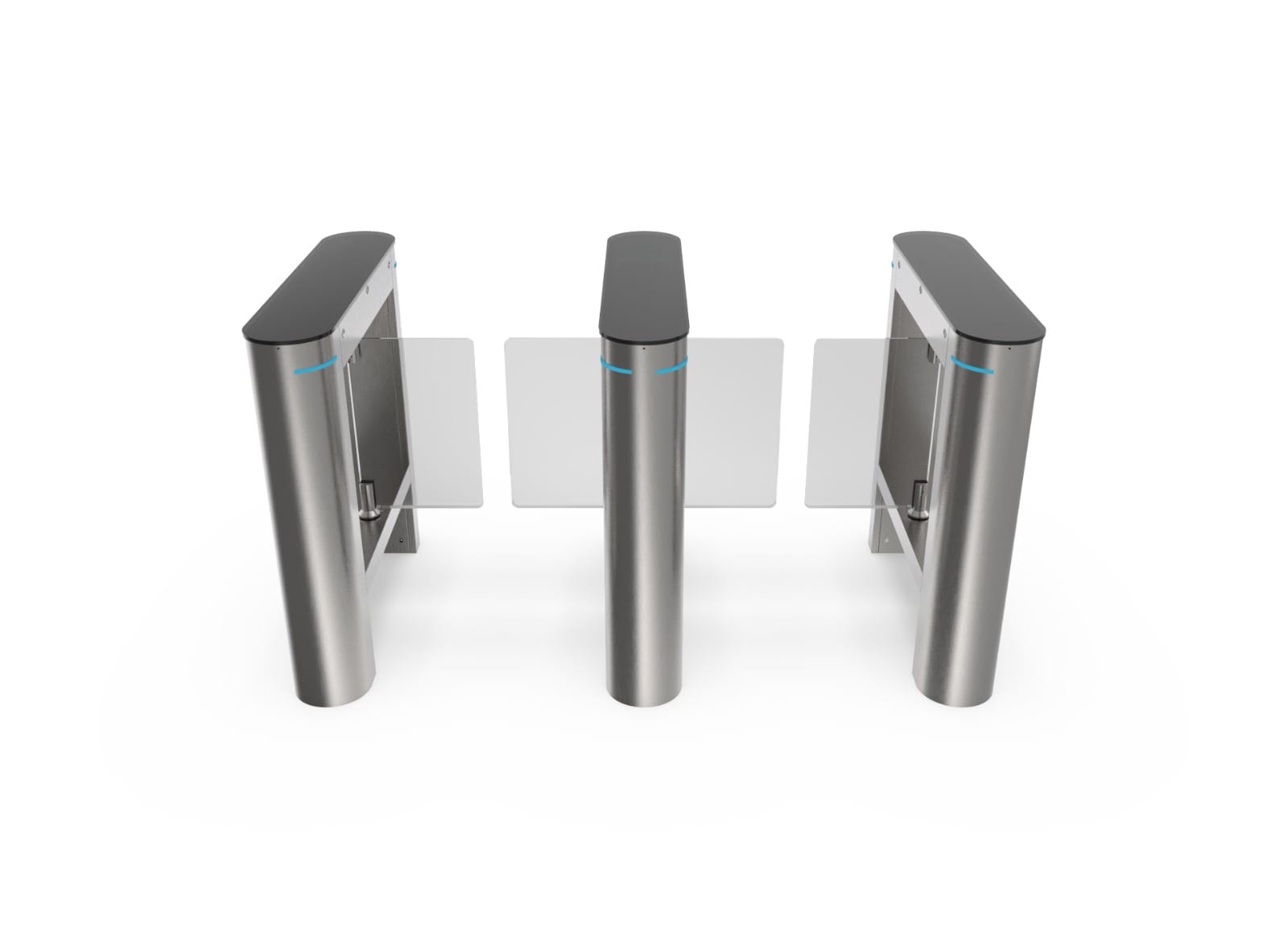

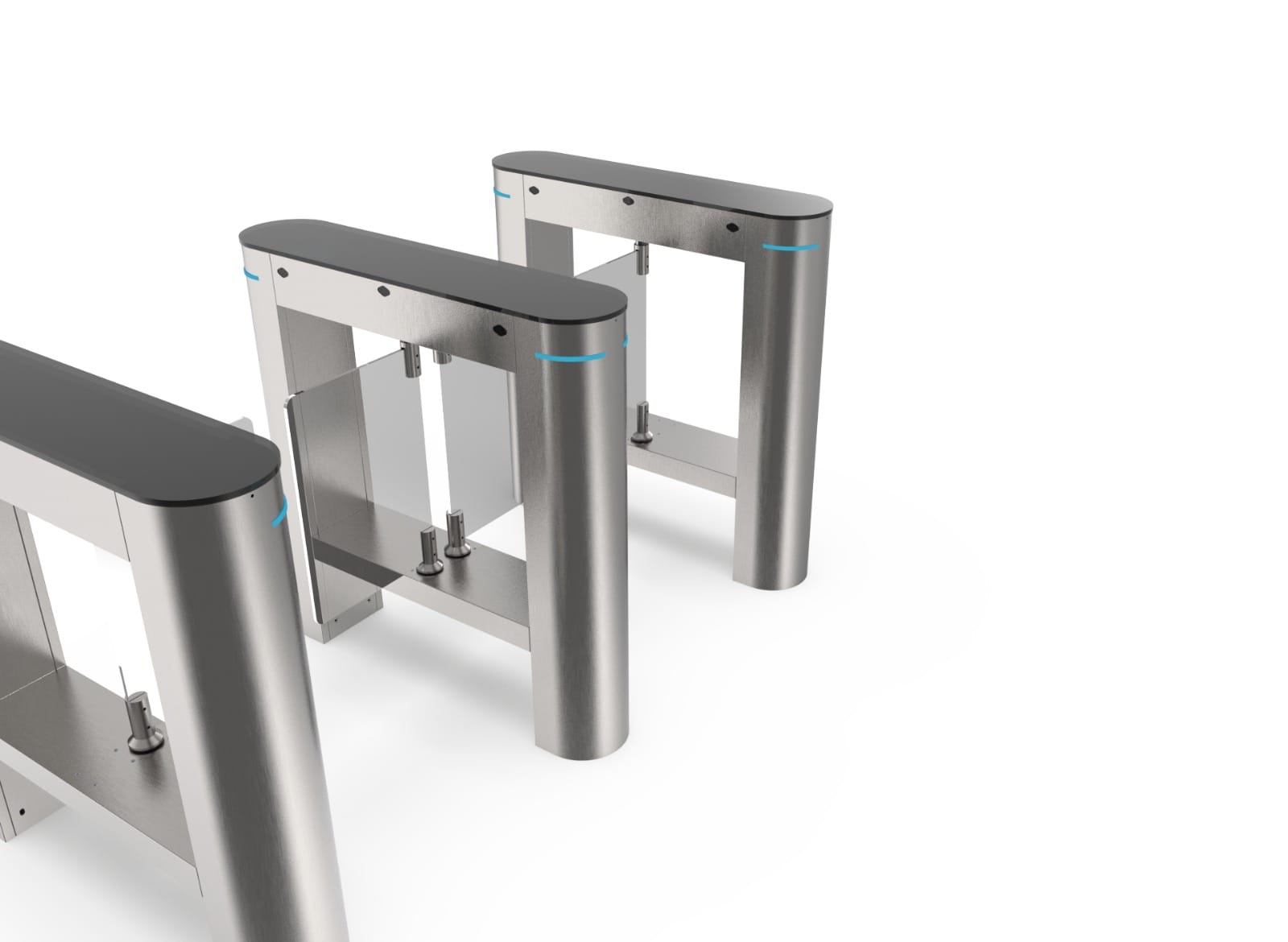

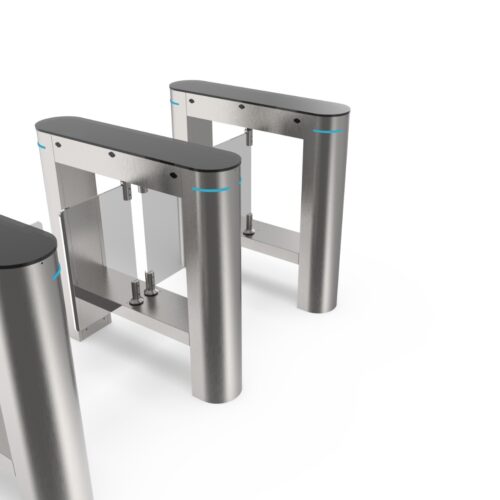

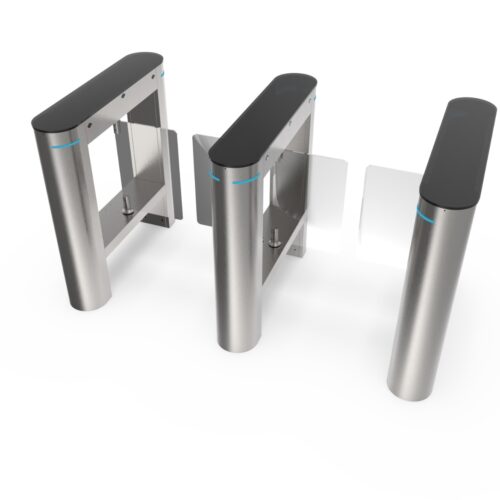

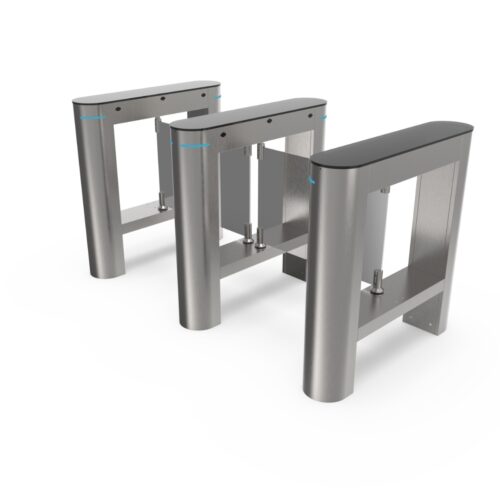

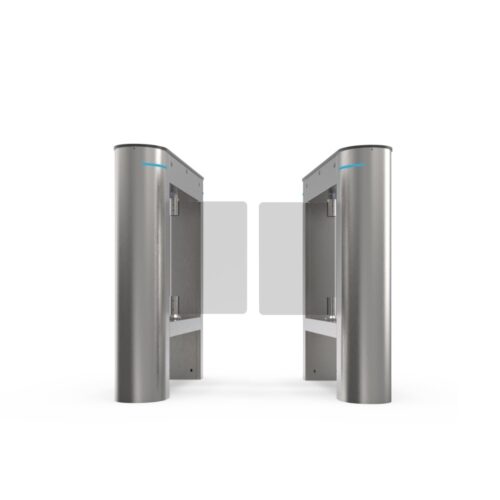

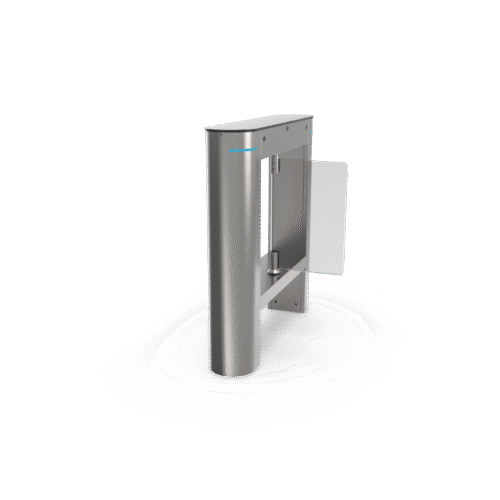

SF 100 Compact

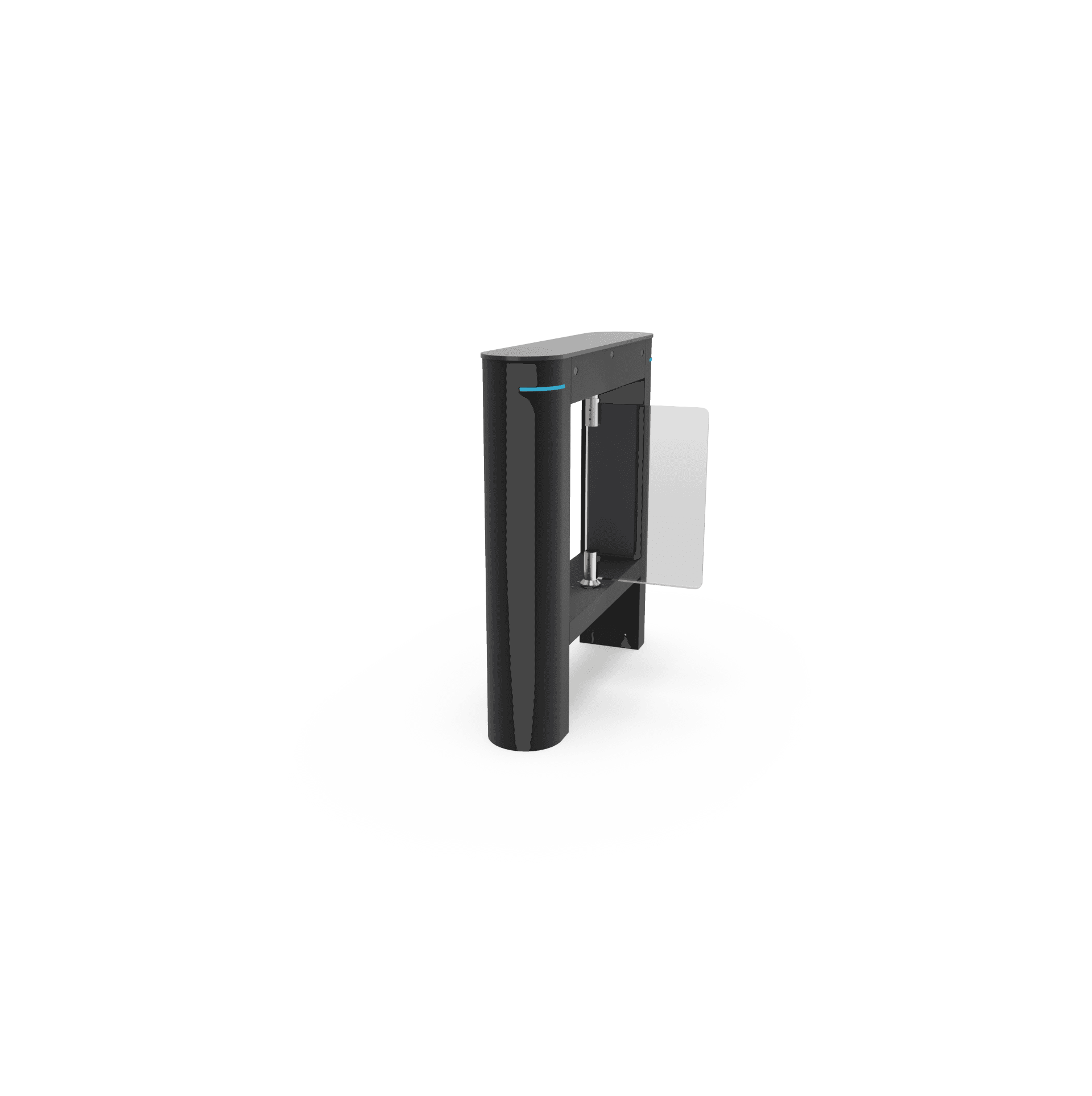

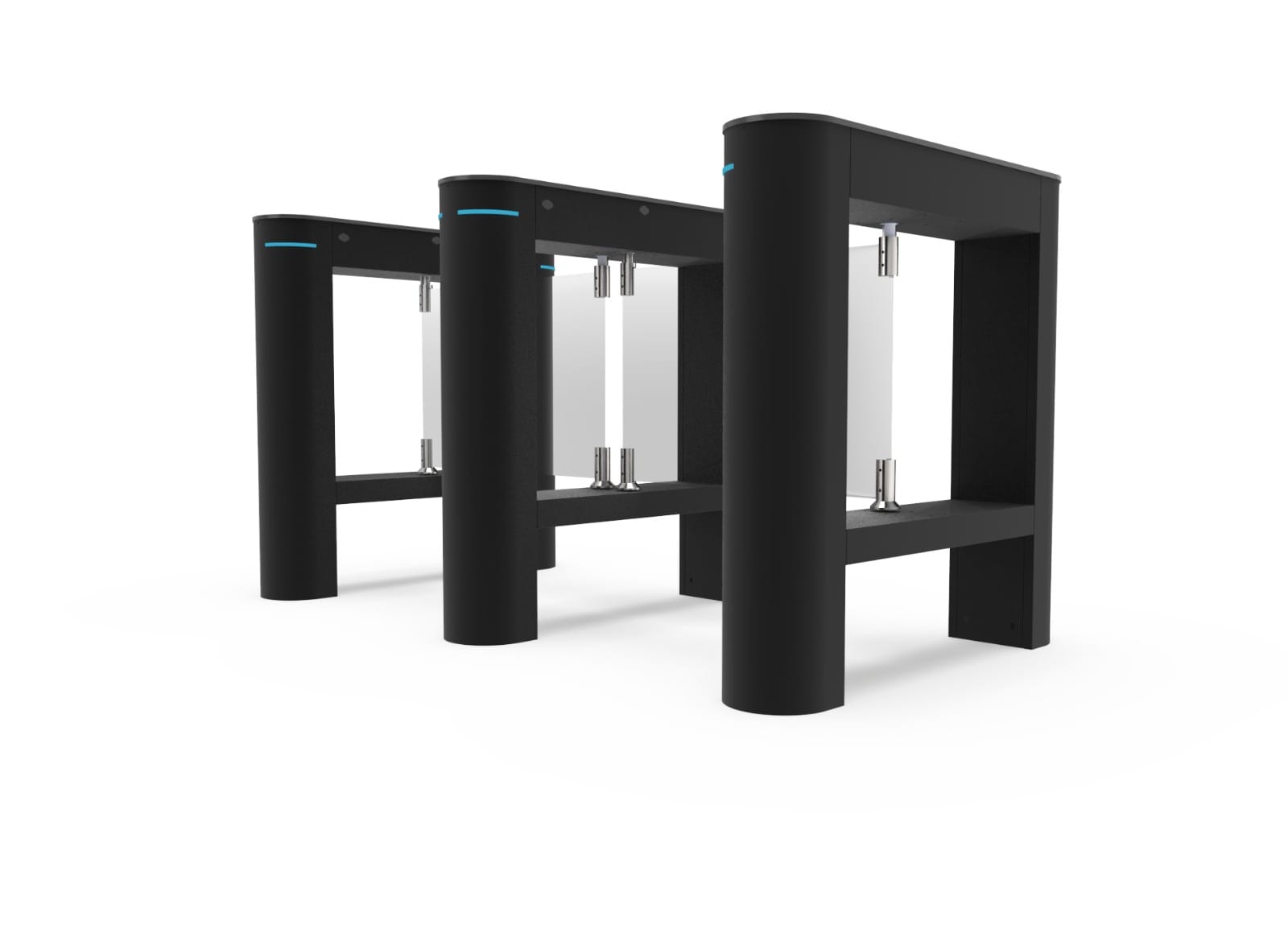

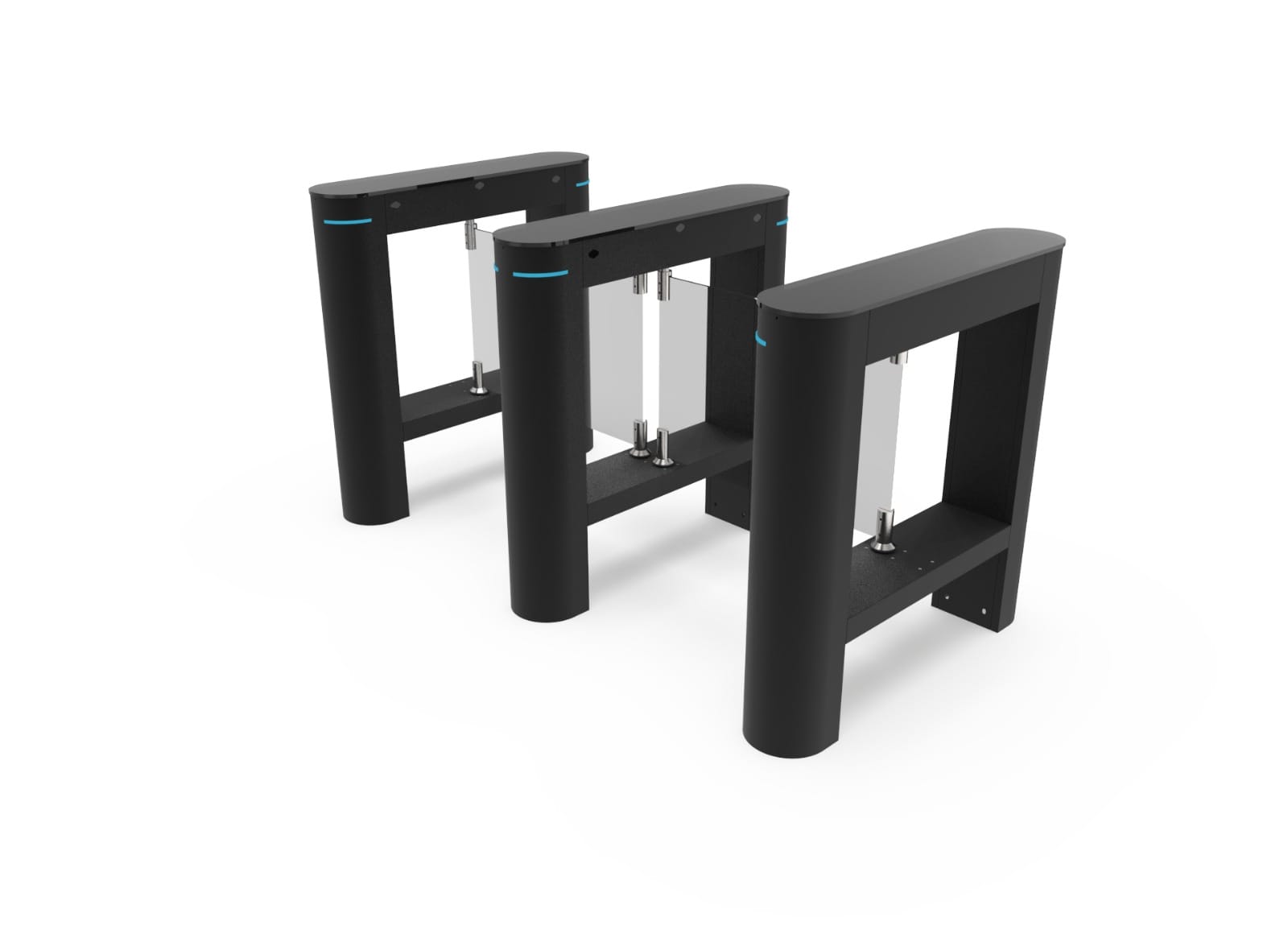

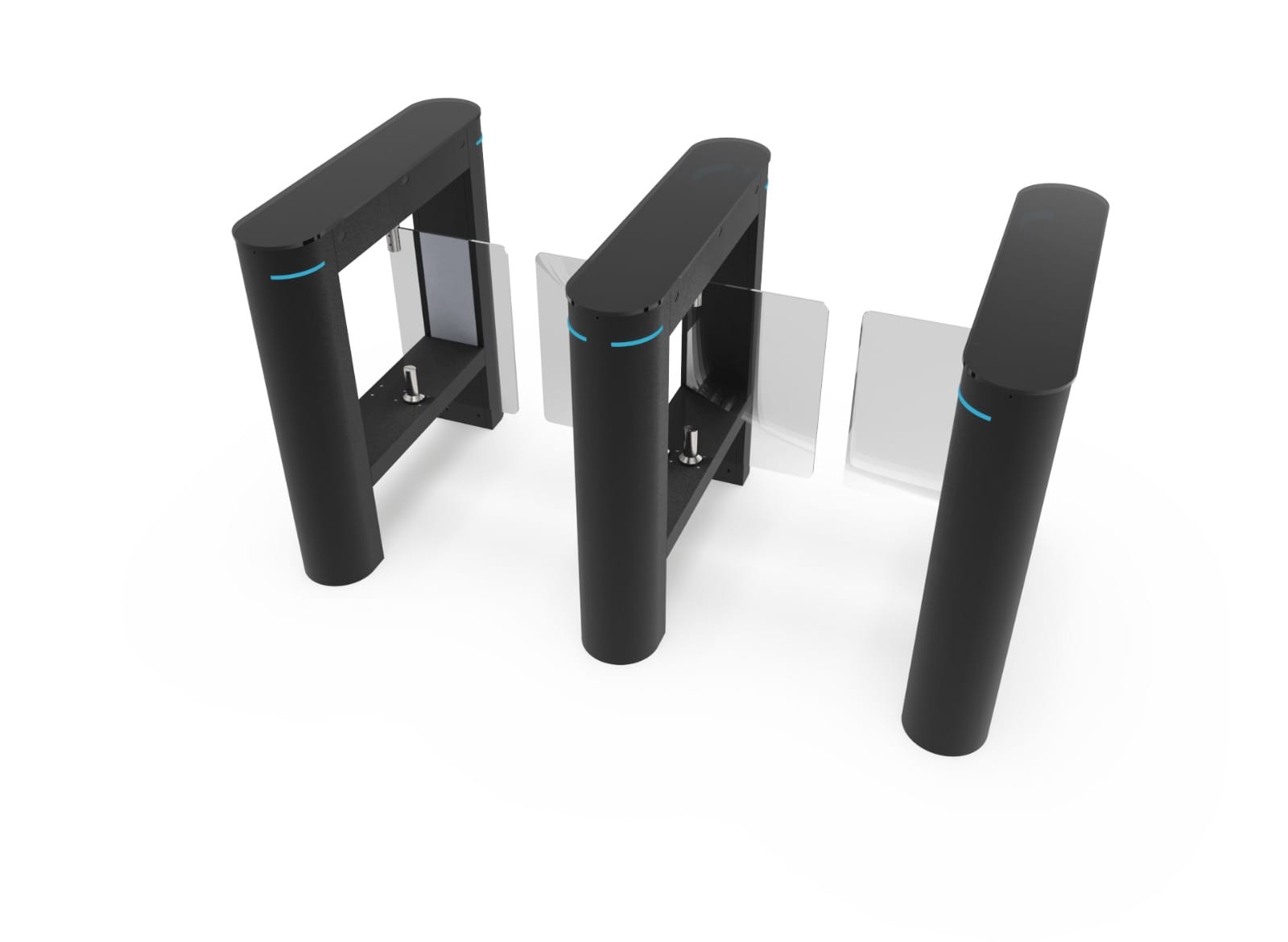

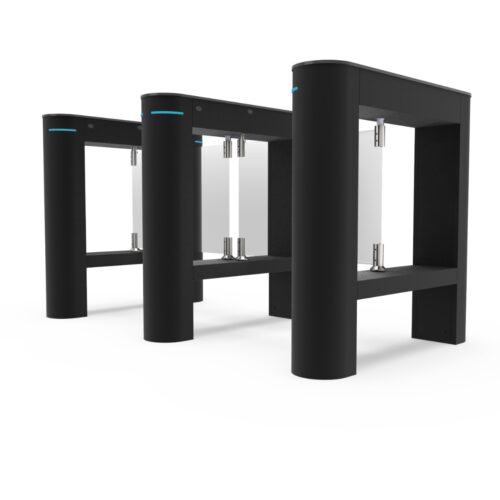

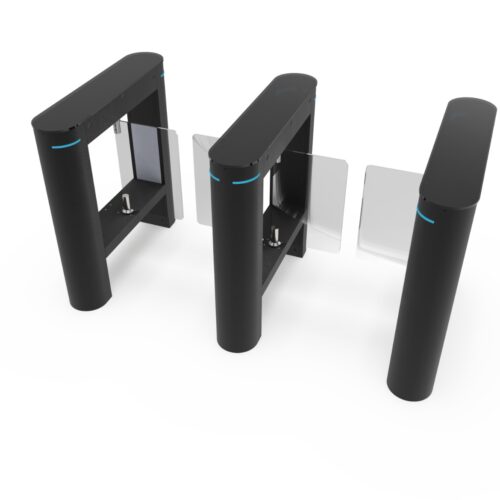

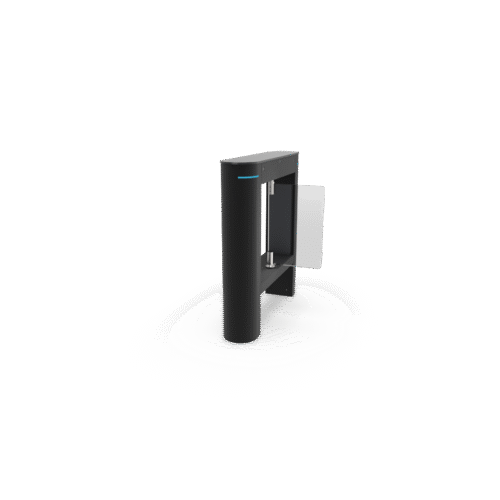

SF 100 Compact Black Edition

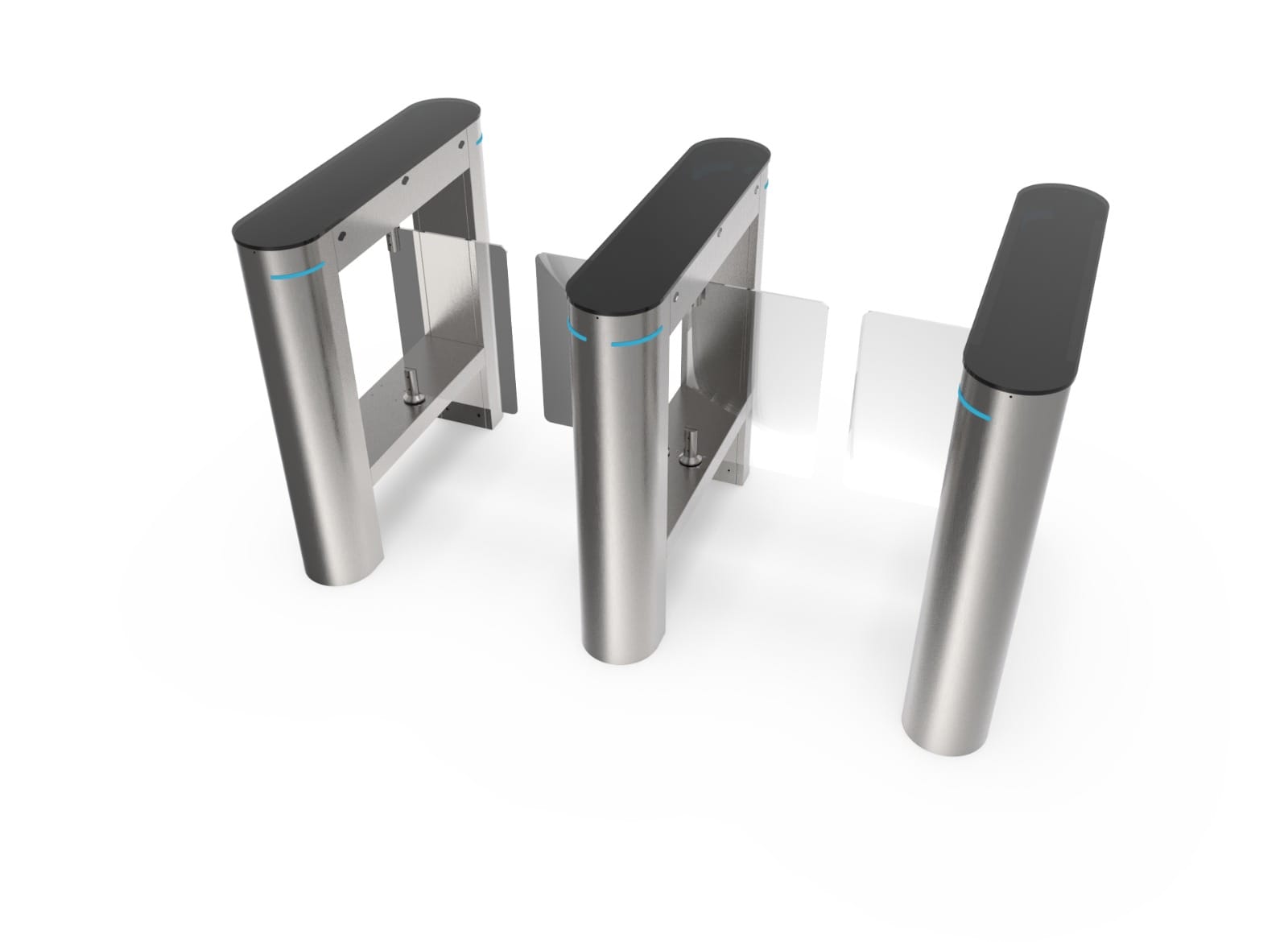

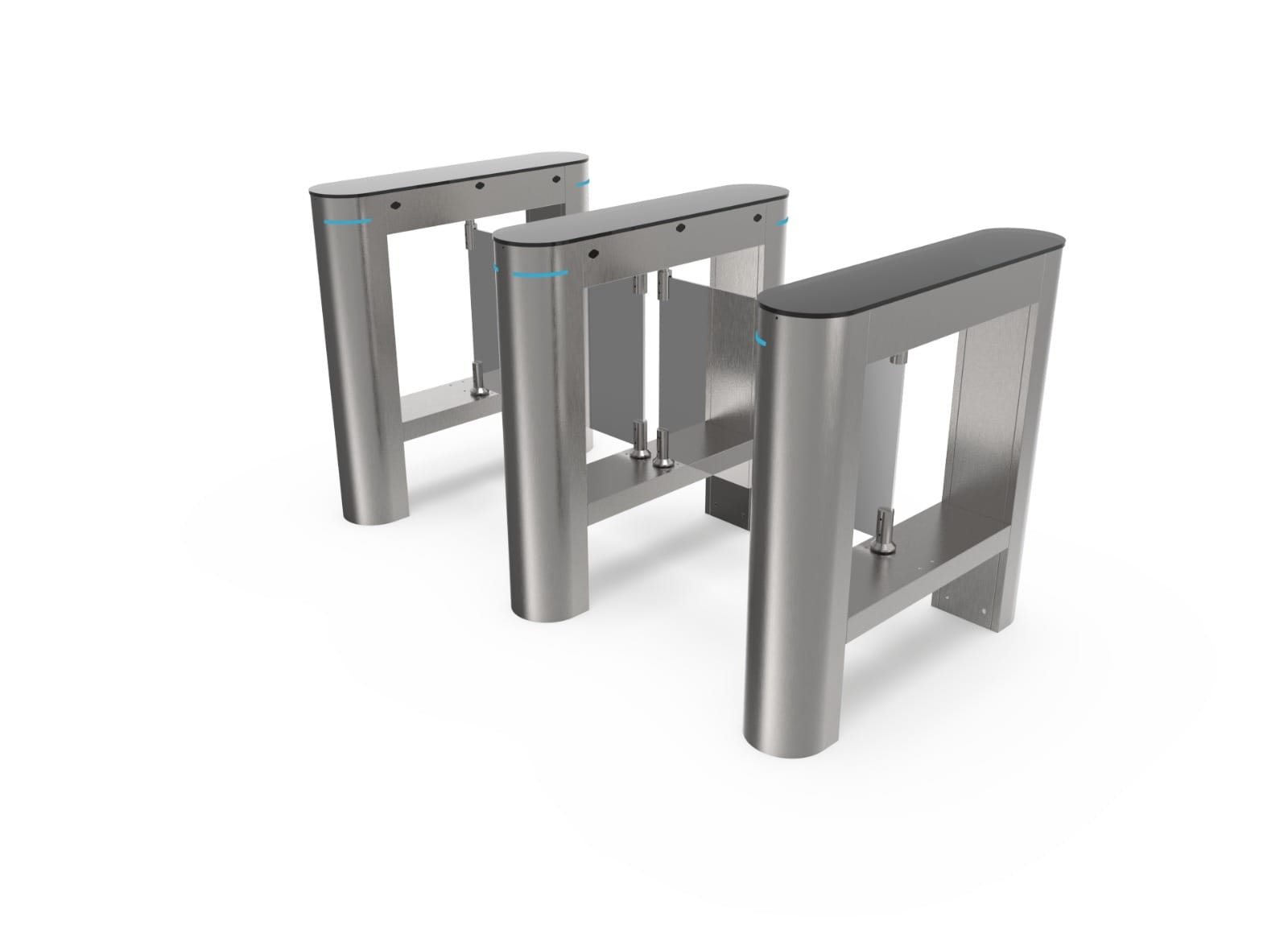

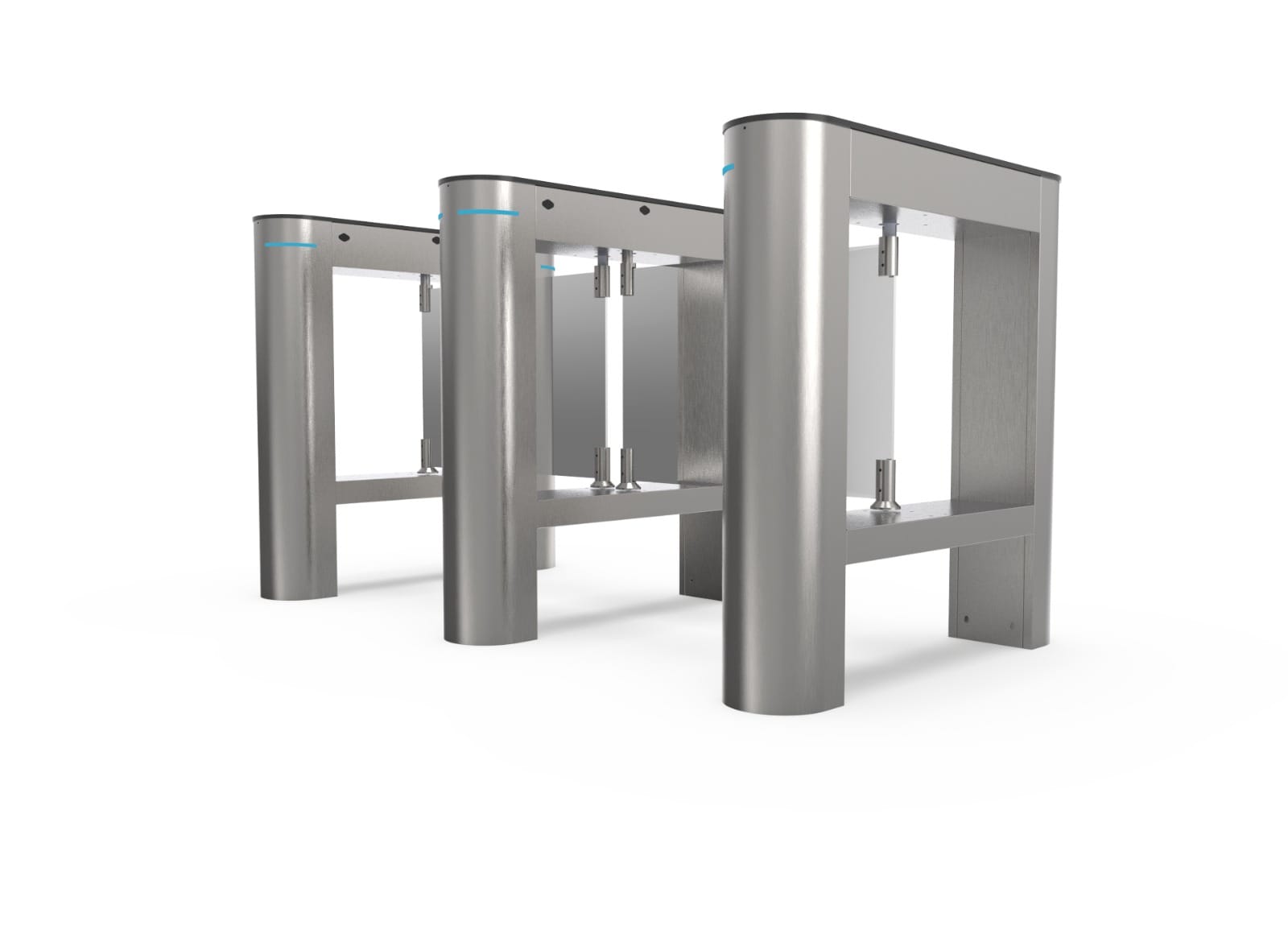

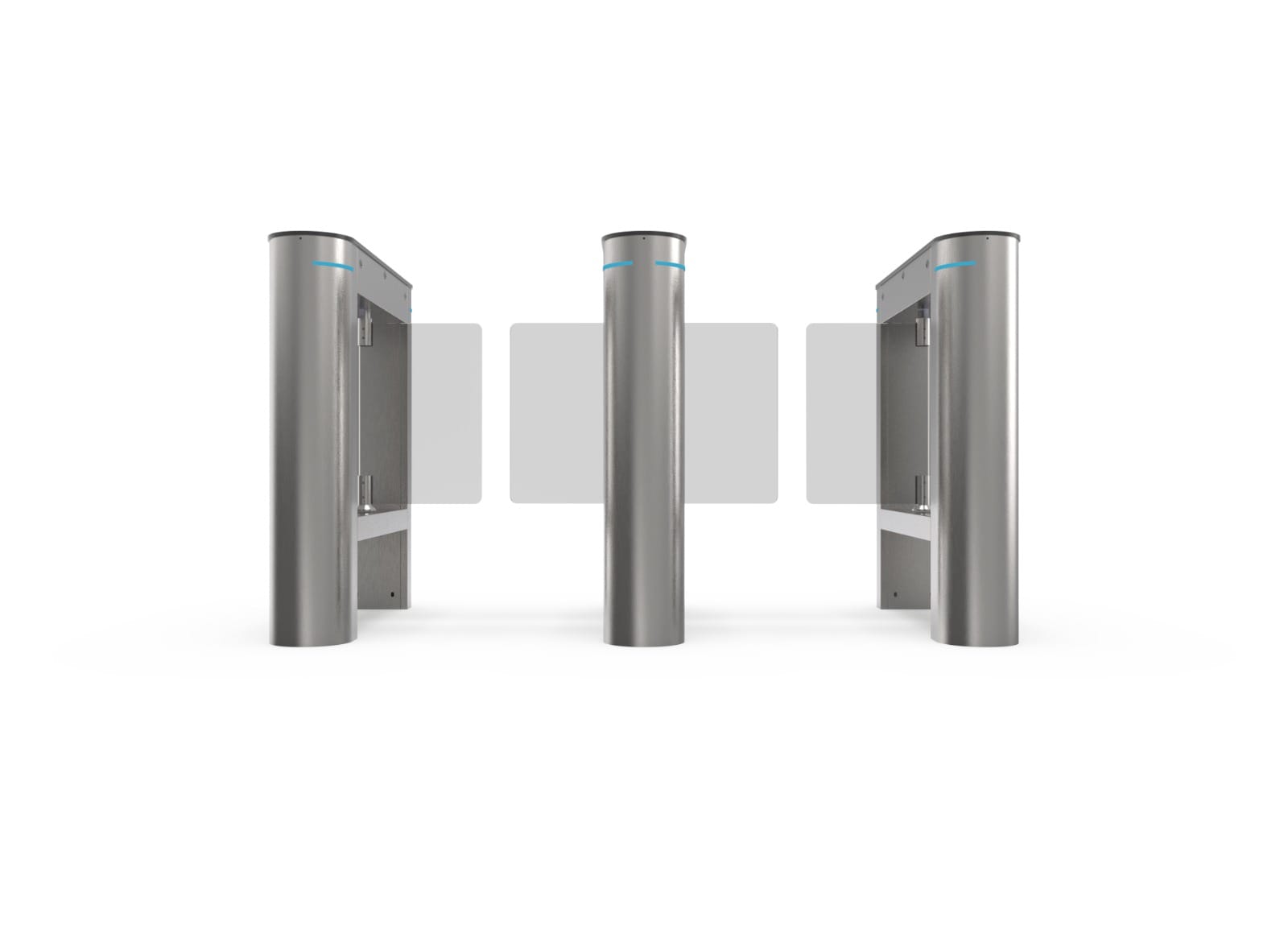

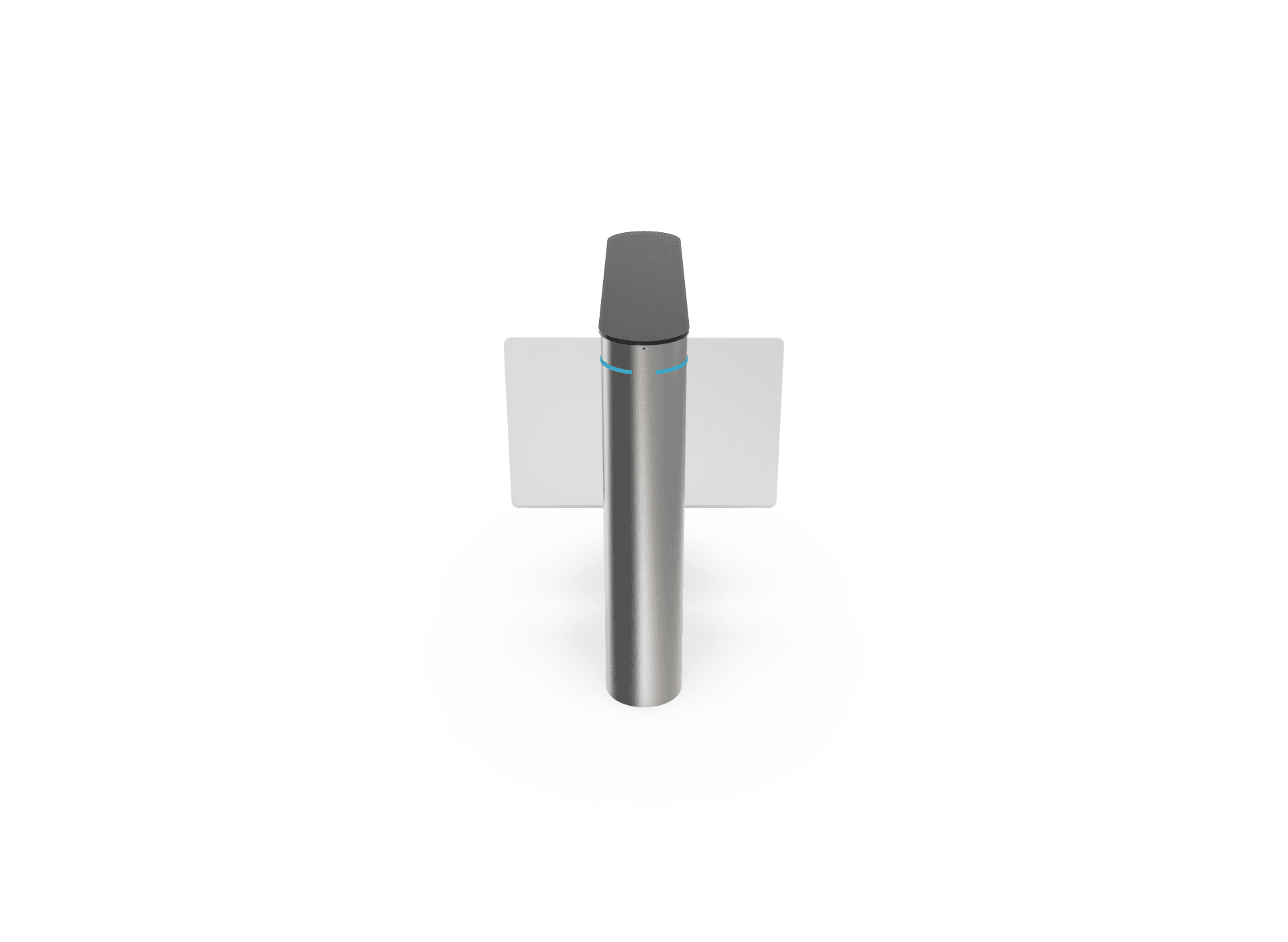

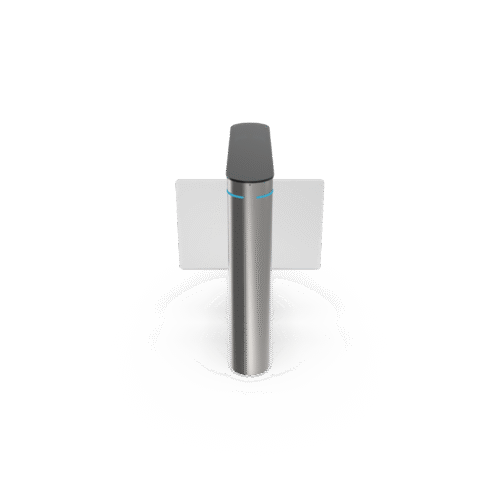

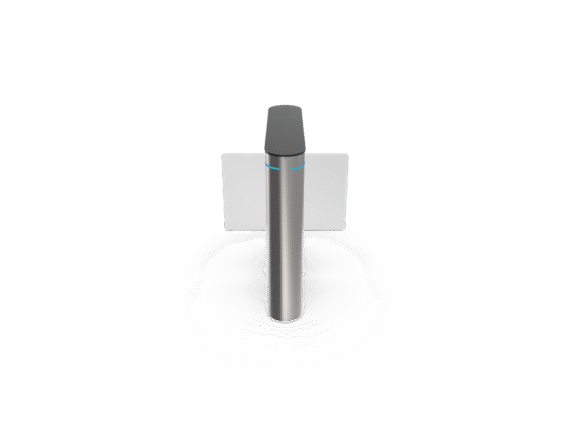

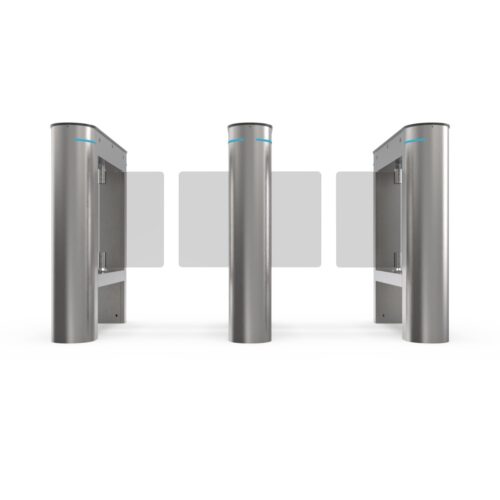

SF 100 Double Compact

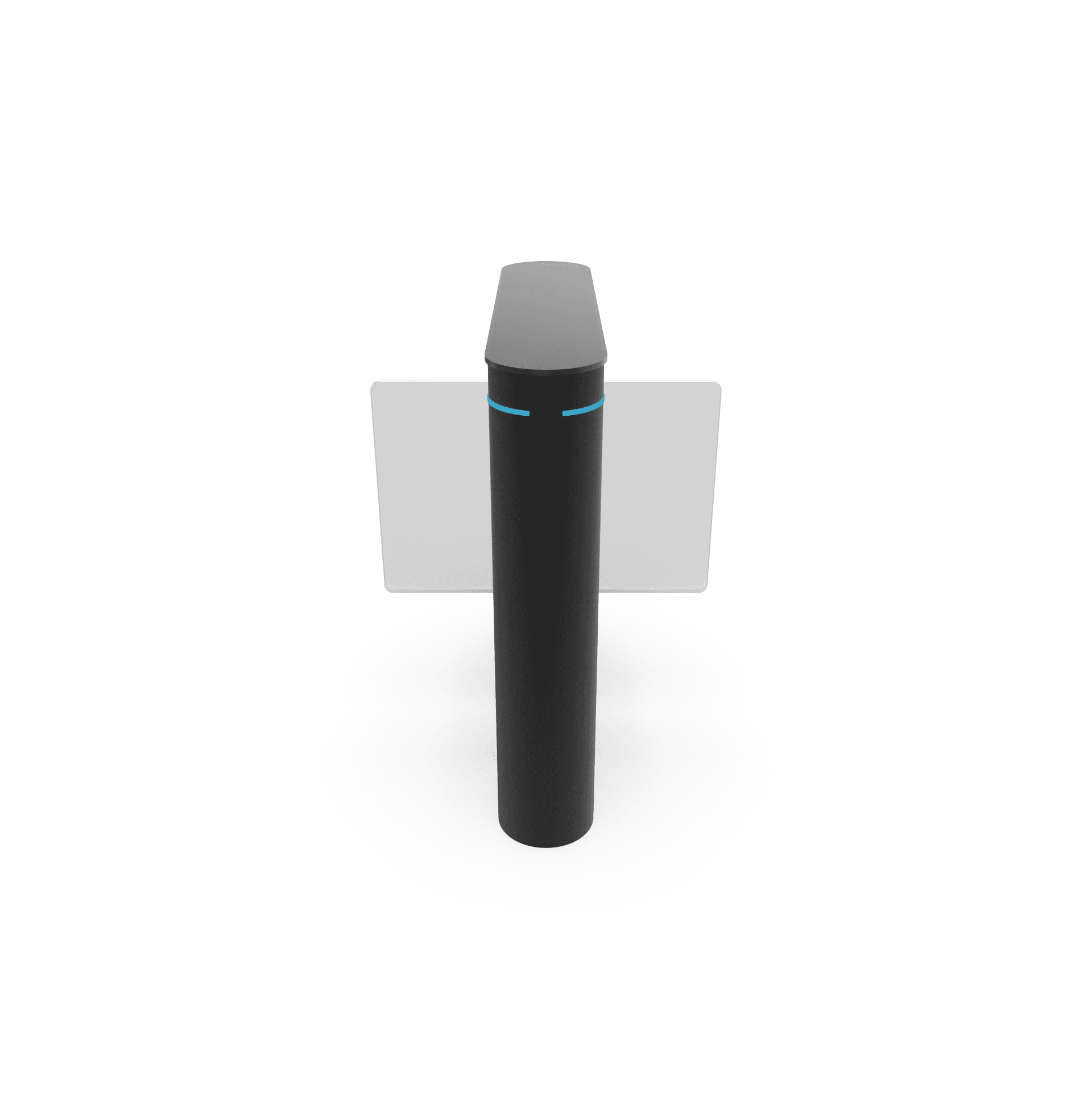

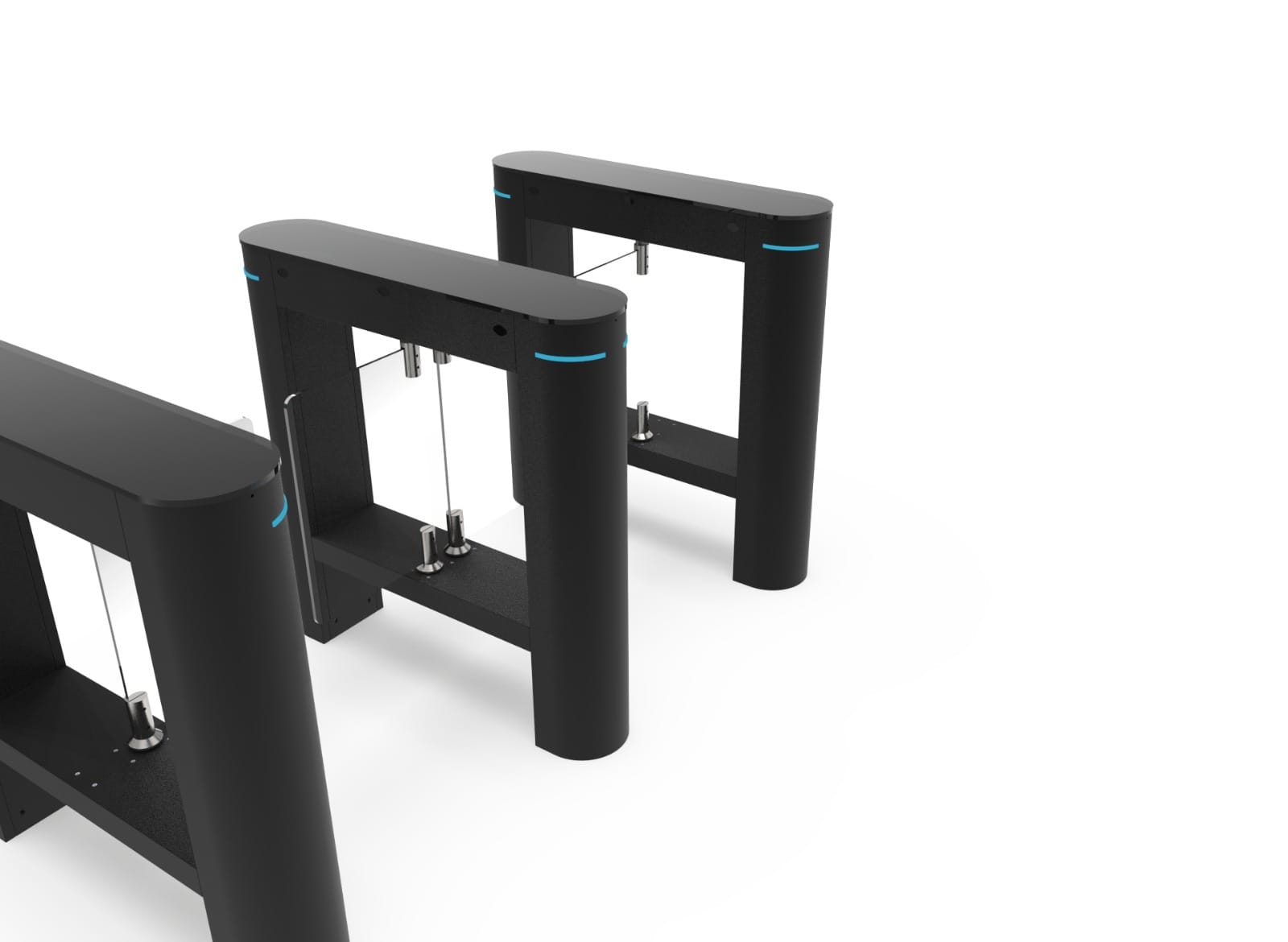

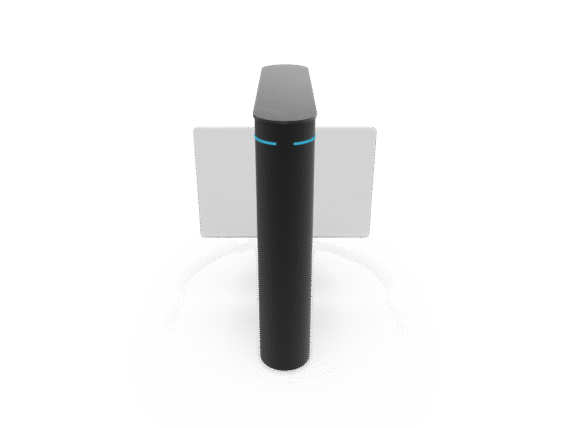

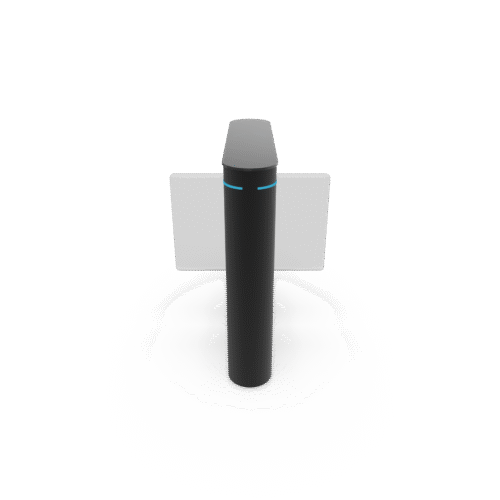

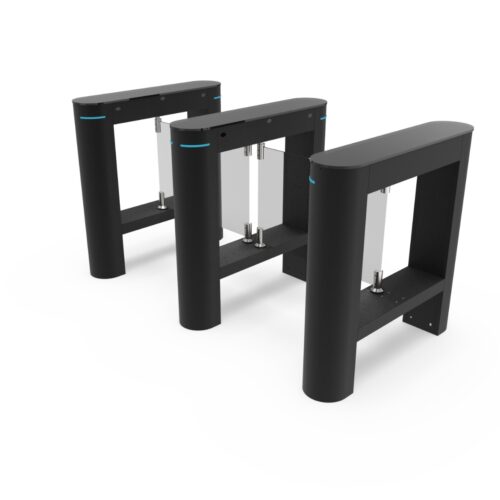

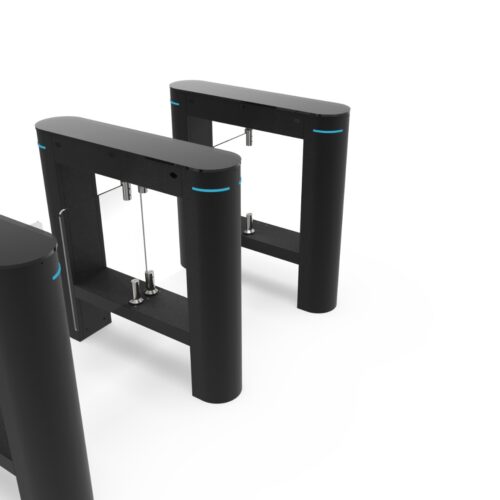

SF 100 Double Compact Black Edition
PRODUCT IMAGES AND CONFIGURATIONS
PROJECTS3D TURNSTILE ANIMATIONSUpdate Required To play the media you will need to either update your browser to a recent version or update your Flash plugin.
Update Required To play the media you will need to either update your browser to a recent version or update your Flash plugin.Update Required To play the media you will need to either update your browser to a recent version or update your Flash plugin.General Features & Technical Specifications
Body ;
The body is produced in two different body types as AISI 304 quality stainless steel or electrostatic
oven powder painted.
Top cover 8mm Plexi, Ops. 8mm Tempered & Ground Glass
Leafs 8mm Plexi. Optionally 10mm Plexi Transparent or coloredEngine and Brake ;
The motor is BLDC and reducer and is suitable for intensive and long-lasting use.Security ;
You can customize your device according to many requests and demands with the quick menu option on the main card. For example; There are many features such as Entry & Exit free or card pass option, Automatic shutdown and time setting, Motor opening & closing speed, smooth mode according to density, leaf impact response, preventing unauthorized entry from the opposite direction, opening direction in case of panic or disaster, leaf thrust, leaf deceleration rate.
Ops : RS 485 Connection Port Available
Transition corridor area is monitored by mutual sensors.Emergency and Evacuation ;
When de-energized or panic contact is received, it automatically opens in the set direction, the leafs remain open until the emergency situation returns to normal. (Since this structure is not battery powered, it is designed to allow free passage without maintenance and replacement).Intensive Use ;
In areas where there is density, the leaf is in the open position by taking consecutive contacts and the authority of the person passing with the LED indicator can be monitored and a smoother passage can be provided.Transitional Comfort and Solutions ;
Passage distance is standard and can be produced specially to order in the range of Max 60cm.FEATURES
Dimensions
Transition Width : 450 to 600mm
Door Leaf Spring Height : 830 mm
Wing Height : 500mm
Movable Wing Bottom Clearance : 330 mm
Body Length : 1000 mm
Body Height : 990 mm
Body Width : 200mmBody and Options
Chassis : AISI 304 Quality Stainless Steel or Electrostatic Powder Coated
Top cover : 8mm Plexi, Ops. 8mm glass
Door Barrier Leaf : 8 mm Transparent Plexi,Electromechanics
Electricity Supply: 230 VAC, 50/60 Hz
Power Supply Unit: 24V
Drive Mechanism: BLDC Motor and Gearbox, Integrated encoder
Opening/Closing Time: 0.5 – 1.2 sec (depending on the size of the moving wing)
Sensors 3 sensors according to preferred models.
IP: IP54
Communication Option : RS485, TCP/IP
Warranty : 2 Years
